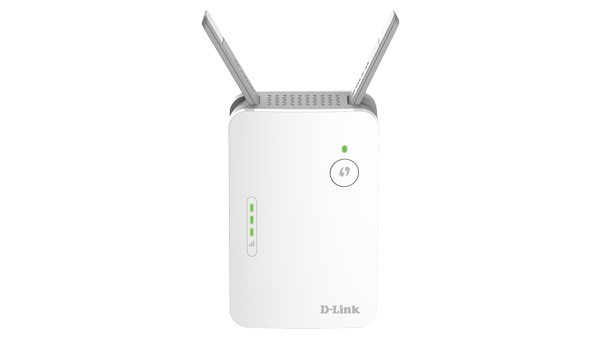

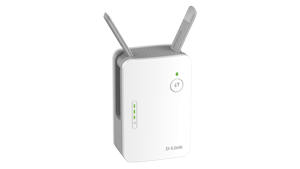

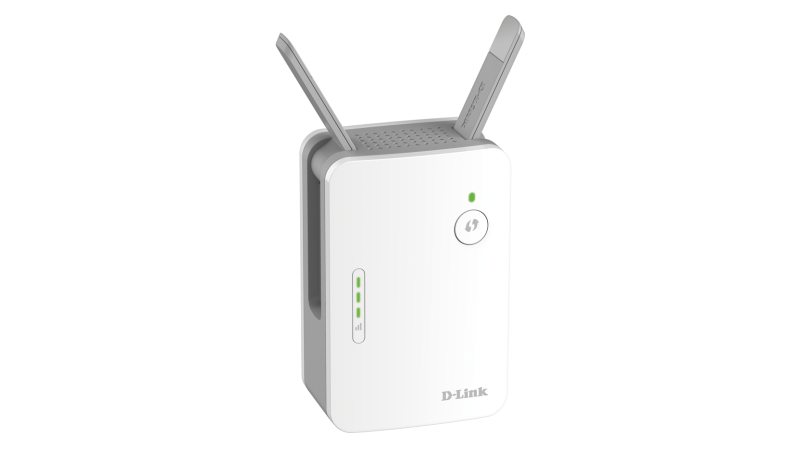

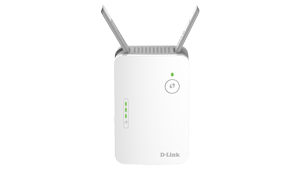

D-Link DAP-1620
AC1200 Wi-Fi Range Extender

Sorry, this product is no longer available, replaced by the DAP-1610-US.

Overview:

The DAP-1620 AC1200 Wi-Fi Range Extender will extend the coverage of your home’s existing wireless network and eliminate dead zones. With a compact design and wireless speeds of up to 1200Mbps, the DAP-1620 will let you enjoy a fast wireless connection.

DAP-1620 AC1200 Wi-Fi Range Extender

Extend your home wireless coverage

You can extend your wireless network using Wi-Fi or using an Ethernet cable. Either way, you will extend your home’s wireless coverage without worrying about signal strength. Dual-band technology helps reduce interference from nearby wireless transmitters in the home, and also provides backward compatibility with older wireless devices in your network. Ultra fast wireless transfer rates for all of your web browsing, HD media streaming, and gaming needs.

Smart Signal Indicator

Don’t worry about dead spots and not knowing the best signal strength for the best coverage. The Smart Signal Indicator will help you find the best location for optimal coverage throughout your home so you can enjoy more of what you like most in life.

Extend your wireless network and eliminate dead spots

Boost the range of your existing Wi-Fi and create a stronger signal in hard-to-reach areas.

Extend your wireless network and eliminate dead spots

Find the best location for optimal coverage

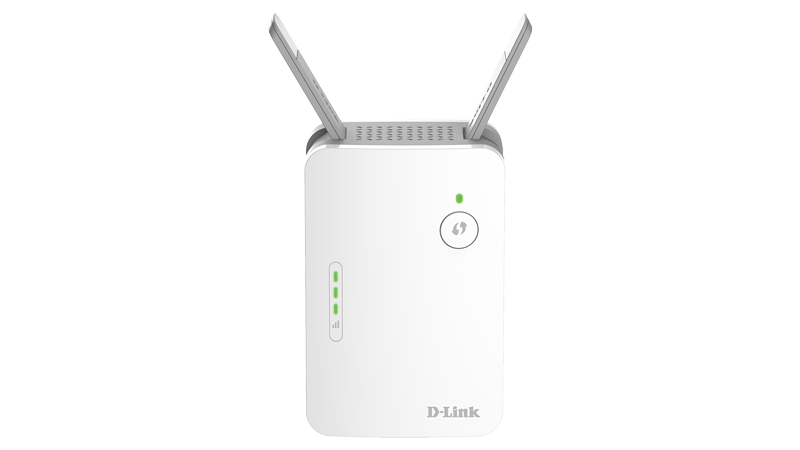

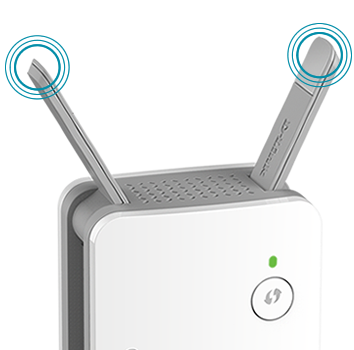

External antennas for more coverage

External antennas help improve Wi-Fi coverage throughout large homes and even backyards. Better Wi-Fi Coverage and more speed.

External antennas for more coverage

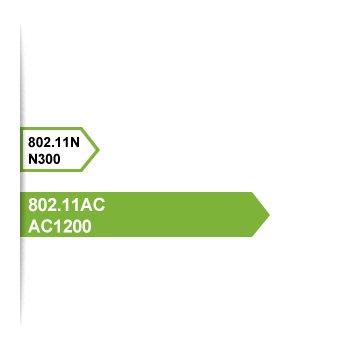

Four times more speed than N300

AC1200 Wi-Fi delivers up to 4X more speed than N300 extenders.

Four times more speed than N300

Features:

Connectivity

Wireless AC gives you high-speed wireless connectivity for your devices
Wireless 802.11n/g/a backward compatibility
Wireless speeds of up to 1200 Mbps
Dual-band connectivity for greater flexibility and reduced interference
10/100/1000 Gigabit Ethernet Port
AP mode ideal for homes that are pre-wired for ethernet or for extended coverage

Security

WPA2/WPA wireless encryption to keep your wireless connection secure
Wi-Fi Protected Setup (WPS) for secure setup with the simple press of a button

Easy to Use

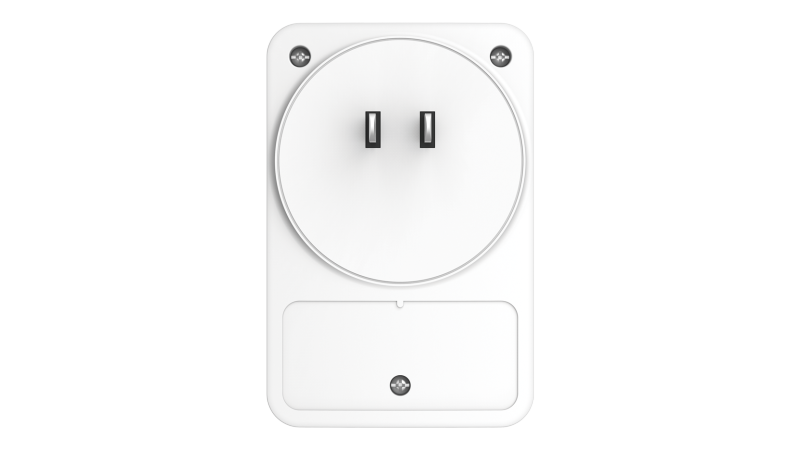

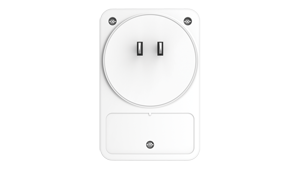

One-piece wall plug design is compact, portable, and does not require additional power cables
Built-in setup wizard and QRS Mobile app for mobile devices guide you through installation

Deployment:

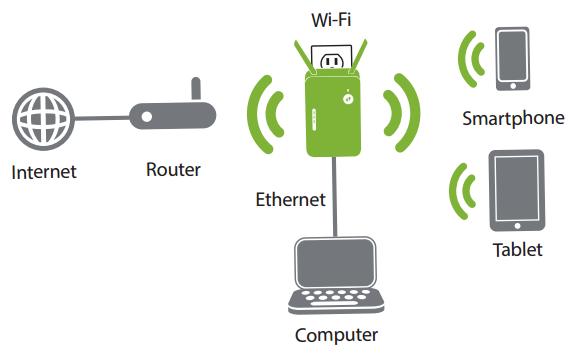

Extend Your Wireless Network Using Wi-Fi or Ethernet

Technical Specifications:

D-Link DAP-1620 Specifications
General

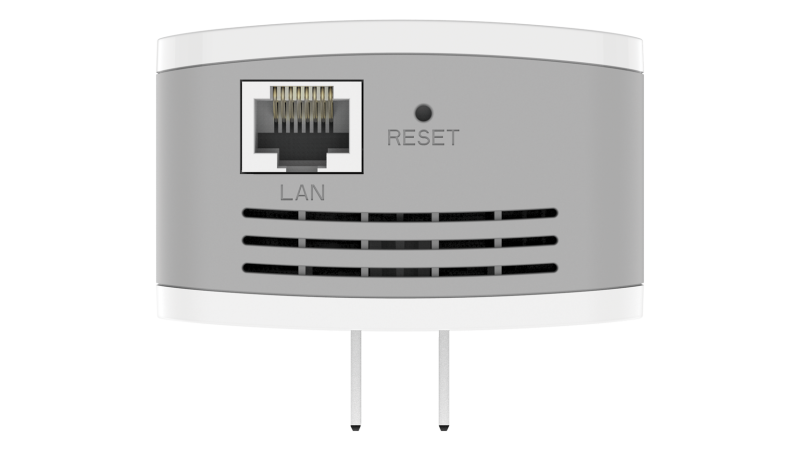

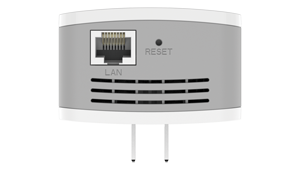

Device Interfaces	802.11 ac/g/n/a wireless LAN 10/100/1000 Ethernet Port Reset Button WPS Button

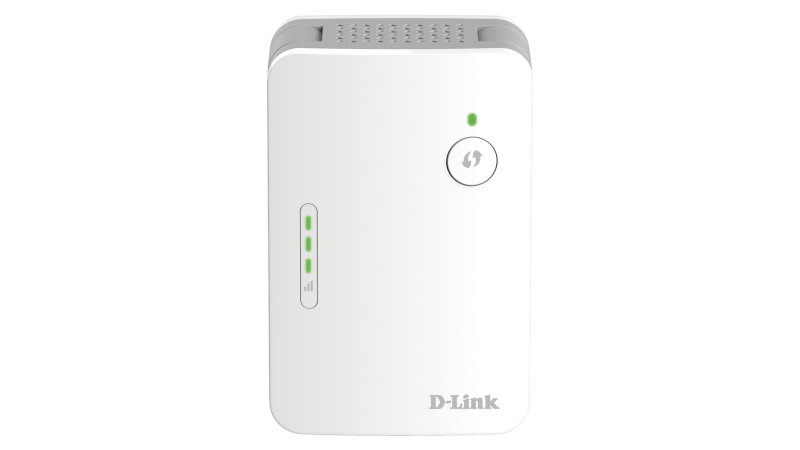

LEDs	Status/WPS 3 Segment Wi-Fi Signal Strength Indicator
Standards	IEEE 802.11ac IEEE 802.11n IEEE 802.11g IEEE 802.11b IEEE 802.11a IEEE 802.3ab
Antennas	Two external antennas
Functionality
Advanced Features	D-Link One-Touch Extender Setup
Wireless Security	Wi-Fi Protected Access (WPA/WPA2) WPS (PBC)
Device Management	Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices Web UI
Physical
Dimensions	2.10 x 2.50 x 3.75 inches
Weight	0.14 lbs
Power	Input: 110 to 240 V AC, 50/60 Hz
Temperature	Operating: 32 to 104 °F Storage: -4 to 149 °F
Humidity	Operating: 0% to 90% non-condensing Storage: 5% to 95% non-condensing
Certifications	FCC C-Tick Wi-Fi Certified UL IC CE EMI/EMC
Warranty
Warranty	1-Year Limited Warranty²

¹ Maximum wireless signal rate derived from IEEE Standard 802.11ac, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, may lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
² 1-year limited warranty valid in the U.S. only
