D-Link DCS-2230
2 MP Full HD Cube PoE IP Camera

D-Link DCS-2230

Sorry, this product is no longer available, please contact us for a replacement.



The DCS-2210/2230 Full HD Cube Network Camera is a versatile surveillance solution that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2210/2230 also includes a builtin mechanical IR cut filter, making it suitable for both day and night applications. The DCS-2230 features 802.11n wireless, allowing the camera to be placed anywhere within range of your wireless network. The DCS-2210/2230 also offers simple installation, an intuitive web-based interface, and remote monitoring and motion detection features for a complete and cost-effective home and business security solution.

Multiple Video Streams
The DCS-2230 supports multiple simultaneous videos streams, each with its own independent resolution, frame rate and compression (H.264, MPEG-4 or MJPEG).

Removable IR-Cut filter
The DCS-2230 comes with a mechanical IR Filter which can be manually applied via the web, or set to automatically adjust based on lighting conditions. This feature allows the camera to capture crisp color video during the day, and clear grayscale video in low light. The integrated infrared LED allows the camera to capture video in complete darkness.

Wireless N Connectivity
The Wireless N Technology on the DCS-2230 provides you with fast, reliable wireless connection so you can view the live video feeds from your camera anywhere, anytime. The Site Survey feature also allows you to view or connect to a nearby wireless network with ease. The DCS‑2210/2230 also includes a standard Ethernet port for connections to traditional wired networks.

Flexible Connectivity
The DCS-2230 includes 802.11n wireless for fast and easy integration into your existing network environment. The DCS-2230 also includes input and output ports that allow connectivity to external devices such as IR sensors, switches, and alarm relays.

ePTZ For Surveying Regions Of Interest
The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera's 2 megapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures.

Easy to Configure and operate
This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network.

D-ViewCam™ for Management
The included D-ViewCam™ IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras. Supporting up to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and events for various security applications. The D-ViewCam™ software is included free of charge with the DCS-2210/DCS-2230.

Two-Way Audio
The integrated microphone and speaker in the DCS-2230 allow it to be used for two-way audio communication. The audio functionality can also be disabled.

Open Network Video Interface Forum (ONVIF)
ONVIF is an industry standard for the interface of IP based physical security products. The DCS-2230 is ONVIF-compliant and therefore interoperable with other manufacturer’s products, such as ONVIF-compliant VMS (video management software).

Product Features:

  • 2 Megapixel progressive CMOS sensor
  • Real-time H.264, MPEG-4, and Motion JPEG compression
  • Full HD resolution up to 1920 x 1080
  • Fixed lens 4.37 mm f2.0
  • Built-in mechanical IR cut filter for day/night surveillance
  • Built-in IR LED for no-light environments
  • Built-in PIR (Passive Infrared) sensor for accurate motion detection
  • Simultaneous multi-stream support
  • ePTZ
  • Integrated microphone & speaker
  • Privacy Mask feature
  • microSD Card slot
  • 2-way audio support
  • 1 digital input / 1 digital output
  • IEEE 802.11n
  • WPS
  • WEP / WPA / WPA2 wireless security
  • 3GPP mobile surveillance
  • Built-in Samba client for NAS
  • ONVIF-compliant

Technical Specifications:

D-Link DCS-2230 Specifications
Hardware Profile
  • 1/2.7" 2 Megapixel progressive CMOS sensor
  • IR Illumination distance: 5 m
  • Minimum illumination: 0 lux with IR illumination
  • Built-in Infrared-Cut Removable (ICR) filter module
  • Built-in PIR (Passive Infrared) sensor
  • 10x digital zoom
  • Fixed length: 4.37 mm
  • Aperture: F2.0
Field of View (H)67.4° / (V) 40.8° / (D) 75°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 3 configurable privacy mask zones
  • Configurable white balance, shutter speed, brightness, saturation, contrast, and sharpness
Video Compression
  • H.264/MPEG-4/MJPEG simultaneous format compression
  • JPEG for still images
  • H.264/MPEG-4 multicast streaming
Video Resolution
  • 16:9 - 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
  • 4:3 - 1440 x 1080 (up to 15 fps), 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps
Audio Support
  • G.726
  • Built-in microphone and speaker
External Device Interface
  • 10/100 BASE-TX Ethernet port
  • 802.11n wireless
  • 1 DI / 1 DO
  • microSD card slot
Network Protocols
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • IP filtering
  • 3GPP
  • IGMP
  • ONVIF-Compliant
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface
  • Operating System: Windows® 7, Windows Vista®, Windows® XP, Windows® 2000
  • Browser: Internet Explorer, Mozilla Firefox, Netscape, Opera
Event Management
  • Motion detection
  • PIR motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
  • Supports multiple HTTP, SMTP, and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
D-ViewCam™ System Requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP
D-ViewCam™ Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered or manual recording options
General Specifications
Power Input 12V DC 1.2 A, 50/60 Hz
Max. Power Consumption 4.0 watts
Environment Indoor Use Only
Operating Temperature 32 to 104° F (0° to 40° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Humidity 20% to 80% non-condensing
Weight 0.16lbs (75 grams)
Dimensions Width: 2.3" (58mm)
Height: 3.25" (95mm)
Depth: 1.5" (38.7mm)
  • CE
  • LVD (EN60965-1)
  • FCC (Class B)
  • C-Tick
Warranty 1-Year Limited1
1 1-Year Limited Warranty available only in the USA and Canada.

Product Views:

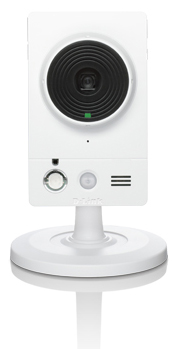

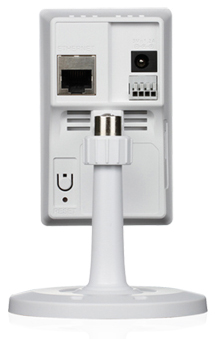

D-Link DCS-2230 Front View D-Link DCS-2230 Back View
D-Link DCS-2230 Front View D-Link DCS-2230 Back View

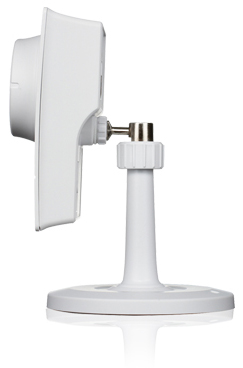

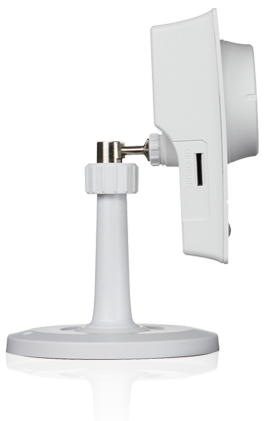

D-Link DCS-2230 Right View D-Link DCS-2230 Left View
D-Link DCS-2230 Right View D-Link DCS-2230 Left View

D-ViewCam 2.0 Network Camera Surveillance Software


Remotely Protect Your Home and Office with D-Link Surveillance Solutions

D-ViewCam 2.0 network camera surveillance software, included in all D-Link network cameras, is a comprehensive surveillance system designed to centrally manage multiple network cameras for home, Small Office and Home Office (SOHO), or Small and Medium Business (SMB) users.

Supporting up to 32 network cameras, D-ViewCam 2.0 is compatible with all current D-Link network cameras, offering digital monitoring and recording capabilities of video, audio, and events for various security applications. This software provides users with a wide array of features for added convenience, including video recording and playback, Video mode, Map mode, Wizard mode, Expert mode, Event Action, and more, offering users powerful surveillance software that's easy to use.

Existing D-Link network camera owners can download the newest D-ViewCam version from the D-Link support site by examining the available downloads for their particular camera part number.

Feature summary:

  • View and manage up to 32 cameras on a single screen easily and hassle free
  • Record and playback detailed video monitoring
  • Control and configure the cameras from any location that has Internet or private network connectivity
  • More efficient and cost-effective security management

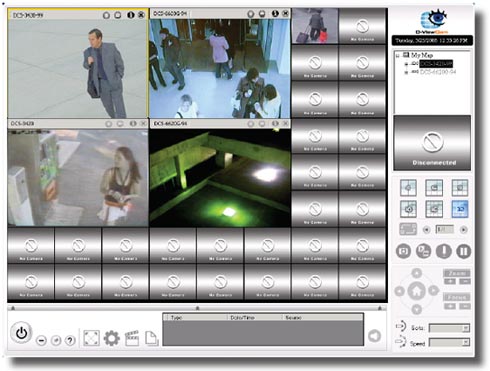

Remotely view and manage up to 32 cameras with D-ViewCam 2.0 software.

Remotely view and manage up to 32 cameras with D-ViewCam 2.0 software.
