D-Link DCS-2230L
Full HD Wireless Day Night Network Camera

D-Link DCS-2230L

Sorry, this product is no longer available, please contact us for a replacement.


The D-Link DCS-2230L Full HD Wireless Day/Night Network Camera is a versatile camera perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2-megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. Additionally, the DCS-2230L is mydlink™-enabled, which makes it easy to setup and accessible from anywhere through the Internet using the free app on your smartphone or tablet, or through any web browser on a computer. The DCS-2230L features 802.11n wireless, allowing the camera to be placed anywhere within range of your wireless network. The DCS-2230L also offers simple installation, an intuitive web-based interface, remote monitoring and motion detection features for a complete and cost-effective home security solution.

Full-featured Surveillance

The DCS-2230L is built with a 2-megapixel image sensor to give you sharp, high quality snapshots and videos with resolutions up to Full HD 1080p, allowing you to see clearer details on objects of interest. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily. The DCS-2230L features a built-in IR LED and IR cut filter, making it suitable for both day and night applications. Wireless connectivity means the DCS-2230L can be conveniently placed anywhere within your Wi-Fi network, without the need to lay additional network cables.

High Performance Video Streaming

The DCS-2230L supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. Additionally, the DCS-2230L supports multicast H.264 and MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.


High Definition Video

  • 1/2.7” 2-megapixel progressive CMOS sensor
  • Real-time H.264, MPEG-4 and Motion JPEG compression
  • Full HD resolution up to 1920 x 1080
  • Fixed lens 2.8 mm F1.8
  • Built-in IR Cut filter Removable (ICR)
  • Built-in IR LED for environments with 0 lux minimum illumination
  • Built-in PIR (Passive Infrared) sensor for motion detection
  • Simultaneous multi-stream support
  • ePTZ for virtual PTZ operation
  • Supports multiple access lists
  • Privacy mask

Connectivity and Flexibility

  • Micro SD Card slot1
  • 2-way audio support
  • 1 Digital Input / 1 Digital Output
  • IEEE 802.11n
  • WPS
  • mydlink Cloud support
  • 3GPP mobile surveillance
  • Built-in Samba client for NAS
  • ONVIF compliant

Technical Specifications:


Camera Hardware Profile

  • 1/2.7” 2 Megapixel CMOS sensor
  • 5 metre IR illumination distance
  • Minimum illumination: 0 lux with IR LED on
  • Built-in Infrared-Cut Removable (ICR) Filter module
  • Built-in PIR sensor (5 metre)
  • Built-in microphone and speaker
  • 10x digital zoom
  • Focal length: 2.8 mm
  • Aperture: F1.8
  • Angle of view:
    • (H) 103°
    • (V) 55°
    • (D) 118°

Image Features

  • Configurable image size, quality, frame rate and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Configurable privacy mask zones
  • Configurable shutter speed, brightness, saturation, contrast, and sharpness

Video Compression

  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images

Video Resolution2

  • 16:9 - Up to 30 fps at 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270
  • 4:3 - Up to 30 fps at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 600 x 480, 320 x 240

Audio Support

  • MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
  • G.711 audio encoding, bit rate: 8 kbps to 64 kbps

External Device Interfaces

  • 10/100 BASE-TX Fast Ethernet port
  • 802.11n wireless with internal antenna
  • DI/DO socket for connection to external devices
  • microSD/SDHC card slot1


Network Protocols

  • IPv6 / IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP client
  • NTP client (D-Link)
  • DNS client
  • DDNS client (D-Link)
  • SMTP client
  • FTP client
  • Bonjour
  • Samba client
  • PPPoE
  • UPnP port forwarding
  • IP filtering
  • QoS
  • CoS
  • Multicast
  • IGMP
  • ONVIF compliant


  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption

System Management

System Requirements for Web Interface

  • Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP, Mac OS X 10.5 or above
  • Browser: Internet Explorer 7, Firefox 12, Safari 7 or above

Event Management

  • Motion detection, Periodic, Digital Input, System Boot, Network Lost, PIR
  • Event notification and saving/uploading of snapshots/video clips via e-mail, FTP, network storage, or SD card
  • Supports multiple SMTP and FTP servers
  • Multiple event notifications
  • Multiple recording methods for easy backup

Remote Management

  • Take snapshots/video clips and save to local hard drive or NAS via web browser
  • Configuration interface accessible via web browser

Mobile Support

  • mydlink mobile app for iOS and Android mobile devices

D-ViewCam System Requirements

  • Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP
  • Protocol: Standard TCP/IP

D-ViewCam Software Functions

  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options



  • 80 g (2.82 ounces)


  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 5 V DC, 1.2 A, 50/60 Hz

Power Consumption

  • max. 3.5 W


  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 70 °C (-4 to 158 °F)


  • Operating: 20% to 80% non-condensing
  • Storage: 5% to 95% non-condensing


  • CE
  • CE LVD
  • FCC

Product Views:

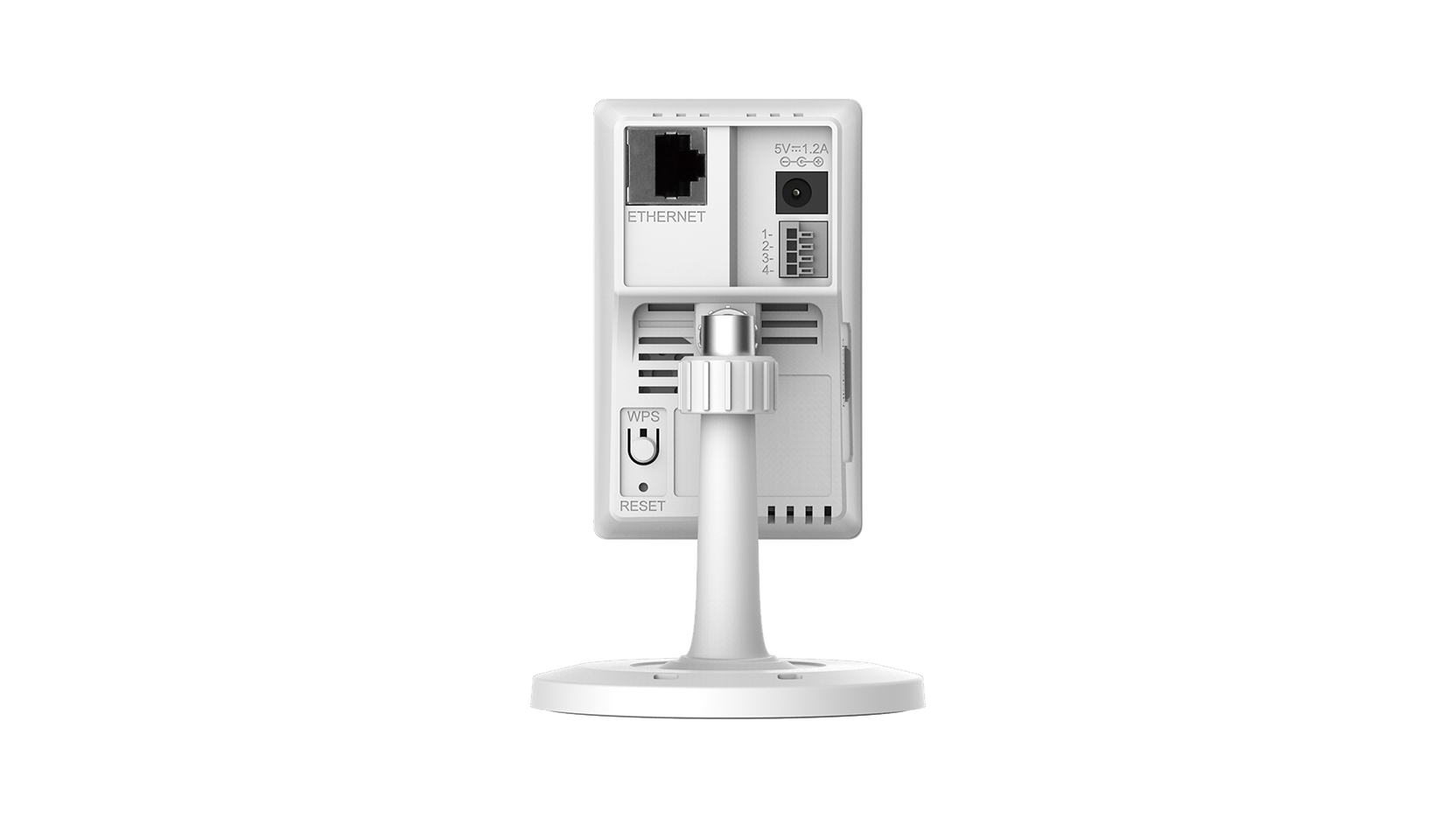

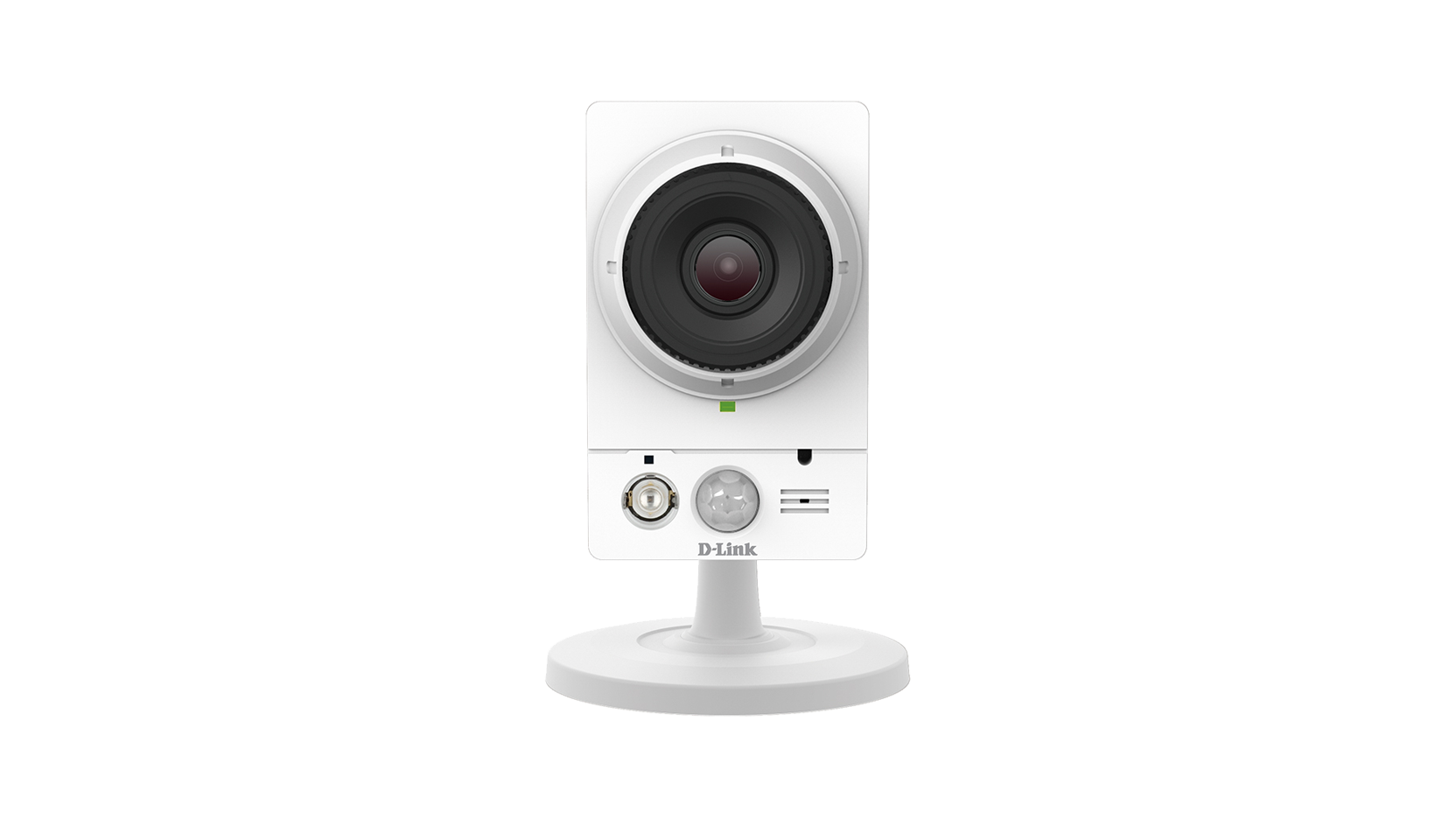

D-Link DCS-2230L Front View D-Link DCS-2230L Back View
D-Link DCS-2230L Front View D-Link DCS-2230L Back View

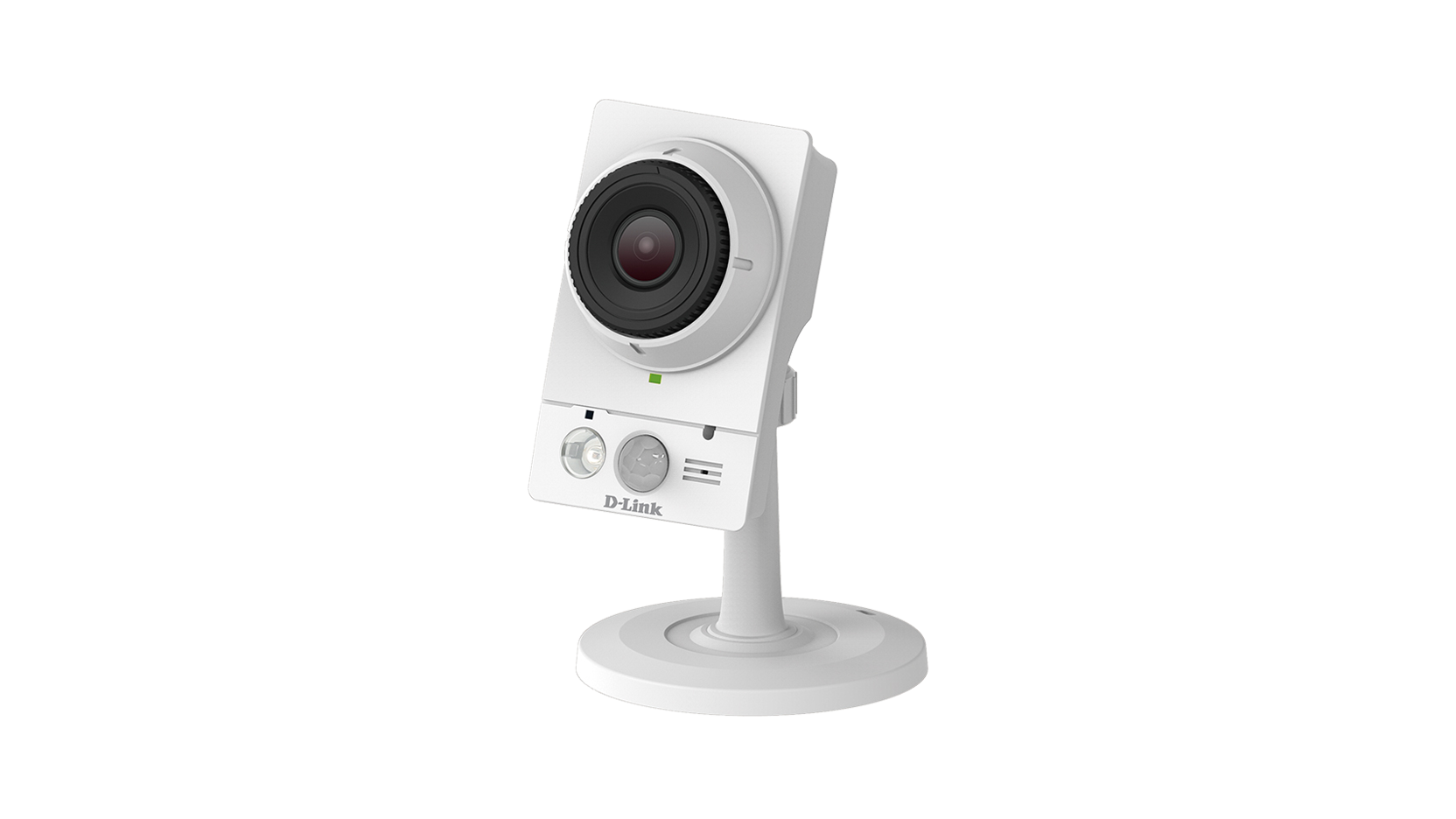

D-Link DCS-2230L Right View D-Link DCS-2230L Left View
D-Link DCS-2230L Right View D-Link DCS-2230L Left View


Download the D-Link DCS-2230L Datasheet (PDF).
