D-Link DCS-3716
Full HD 3MP WDR Box IP Camera

D-Link DCS-3716

Sorry, this product is no longer available, please contact us for a replacement.


High Resolution Surveillance

The D-Link® 3 Megapixel Day & Night Network Camera (DCS-3716) is a high-end megapixel network camera equipped with a Sony Exmor 1/2.8”, 3 Megapixel WDR Progressive Scan CMOS sensor, and a 3.1- 8 mm DC auto iris lens. The DCS-3716 captures video in both dark and light environments, or even subjects shot against a backlight by neutralizing imperfect lighting and generating a realistic image. In addition, the removable IR-cut filter for day/night functionality provides clear detail and high quality video at any point during the day or night. The DCS-3716 incorporates Power over Ethernet (PoE) which allows for easy installation in a variety of locations, an SD card slot for local video recording, and ePTZ for virtual Pan/Tilt/Zoom operation.

Wide Dynamic Range (WDR) Applications

The Wide Dynamic Range (WDR) function provides clear images even under backlit conditions where the intensity of illumination can vary significantly, making the DCS- 3716 perfect for extreme high-contrast environments. For example, when placed indoors, the DCS-3716 adjusts itself to intense sunlight that may be streaming in through windows in the background. This makes it an ideal solution for lobbies, retail stores and warehouse shipping bays.

Flexible Connectivity

The DCS-3716 includes input and output ports allowing connectivity to external devices such as IR sensors, switches, and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/ til enclosure which effectively adds pan/tilt functionality to the DCS-3716. An additional 12V interface provides power for an optional LED illuminator.

D-ViewCam™ for Management

The included D-ViewCam™ IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras. Supporting up to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and events for various security applications. The D-ViewCam™ software is included free of charge with the DCS-3716.

Open Network Video Interface Forum (ONVIF)

ONVIF is an open industry forum for the development of a global standard for the interface of IP based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-3716 is ONVIF-Compliant and therefore compatible with many third party Video Management Software (VMS) solutions.

Multiple Video Streams

The DCS-3716 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 consumes less bandwidth and storage, useful for megapixel video, extended recording or for use in low-bandwidth networks.


  • Sony Exmor 1/2.8”3 Megapixel CMOS Progressive Image Sensor
  • FullHDResolution (1920x1080) up to 3 Megapixel (2048x1536)
  • Multi-Megapixel Auto IrisVarifocal Lens (3.1- 8mm, f1.2)
  • Built-in Mechanical IR Cut FilterforDay/Night Surveillance
  • WideDynamic Range (WDR)
  • Simultaneous Multi-Stream Support
  • Privacy Mask Feature
  • SDCard Slot
  • 2-Way Audio Support
  • 2 Alarm Inputs/ 1 Alarm Output
  • Power over Ethernet(PoE)
  • 3GPP Mobile Surveillance
  • Built-in Samba ClientforNAS
  • ONVIF-Compliant
  • Analog BNCOutput
  • RS-485 Interface forIntegration with Pan/Tilt Units

Technical Specifications:

D-Link DCS-3716 Specifications
Hardware Profile
  • Sony Exmor 1/2.8”3 Megapixel CMOS sensor
  • Minimum Illumination: 0.5 lux (Color); 0.05 lux (B/W)
  • WDR S/N Ratio : 100 dB
  • LensVarifocal Range: 3.1 to 8.0 mm
  • Lens Aperture: F1.2
  • Built-in Infrared-Cut Removable (ICR) Filter module
Angle of View Horizontal: 95.9° to 38.7° /Vertical: 71.0° to 29.1°
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • Time stamp and text overlays
  • 3 Configurable privacy masks zone
  • ConfigurableWDR, white balance, shutter speed, brightness, saturation, contrast, sharpness
Video Compression
  • H.264/MPEG4/MJPEG compression (simultaneous operation)
  • JPEG forstill images
Video Resolution
  • 16:9 - (1920 x 1080), (1280 x 720), (800 x 450), (640 x 360), (480 x 270), (320 x 176), (176 x 144)
  • 4:3 - (2048 x 1536), (1600 x 1200), (1024 x 768), (800 x 600), (640 x 480), (480 x 360), (320 x 240), (176 x 144)
  • 3M (2048x1536) resolution up to 15 fps, and other resolutionssupport frame rates up to 30 fps
Audio Support G.726
External Device Interface
  • 2 Digital Inputs/ 1 DigitalOutput
  • 12V DC, 200 mAOutput
  • RS-485
  • SD Card
  • Audio Input /Output
  • AnalogVideoOutput (BNC)
Network Protocols
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • IP filtering
  • 3GPP
  • CoS/QoS
  • IGMP
  • ONVIF-Compliant
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface
  • Operating System:
    • Windows® 7, Windows Vista®, Windows® XP, Windows® 2000
  • Browser:
    • Internet Explorer, Mozilla Firefox, Netscape, Opera
D-ViewCam™ System Requirements
  • Operating System:
    • Windows® 7, Windows Vista®, Windows® XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: StandardTCP/IP
Event Management
  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple event notification
  • Multiple recording methodsfor easy backup
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
D-ViewCam™ Software Functions
  • Remote management control of up to 32 cameras
  • Scheduled motion triggered, or manual recording options
  • Supports all management functions provided in web interface
  • Viewing of up to 32 cameras on one screen
General Specifications
Power Input 12V DC 1.25 A, 50/60 Hz, 802.3af PoE
Max. Power Consumption 4watts
Operating Temperature 32 to 104° F (0° to 40°C)
Storage Temperature -4° to 158° F (0° to 40°C)
Humidity 20% to 80% non-condensing
Weight 20.45 ounces(580 grams)
  • CE (Class A)C
  • E LVD (EN60965-1)
  • FCC (Class A),
  • ICES-003,
  • C-Tick
  • Length (with Lens): 7.52”(190.9mm)
  • Length (w/o Lens): 5.35”(135.9mm)
  • Width 3.14”(79.7mm)
  • Heigth: 2.08”(52.9mm)
Warranty 5-Year Warranty1
1 5-YearWarranty available only in the USA.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Product Views:

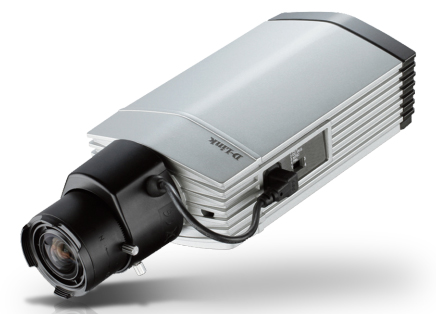

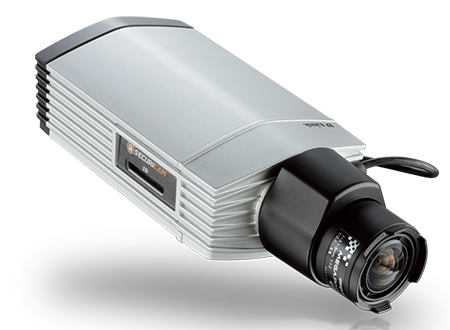

D-Link DCS-3716 Front View

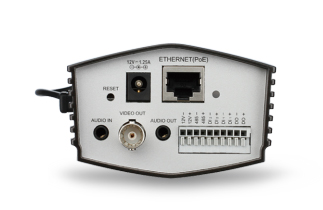

D-Link DCS-3716 Back View
D-Link DCS-3716 Front View D-Link DCS-3716 Back View


Download the D-Link DCS-3716 Datasheet (PDF).
