D-Link DCS-5615
Full HD Mini Pan and Tilt Dome Network Camera

D-Link DCS-5615

Sorry, this product is no longer available. Please contact us for more information.


The DCS-5615 Full HD Mini Pan & Tilt Dome Network Camera features 2 megapixel 1080p HD resolution combined with H.264 compression to enable high quality video footage to be recorded. The DCS-5615 connects to a network to provide high quality live video on a LAN and over the Internet.

Sharp Video Monitoring from Different Angles

With accurate, responsive pan/tilt movement and digital zoom, the DCS-5615 gives you full control, so you can quickly scan a wide area from a variety of angles, and 16x digital zoom lets you zoom in on specific areas for more detail. The DCS-5615 can also be set to automatically move to specific preset positions, allowing the camera to patrol particular areas of interest within a surveillance area.

Full HD Surveillance

The DCS-5615 delivers Full HD 16:9 widescreen IP video, making it easier to view and monitor footage. With the included D-ViewCam 32-channel recording software, the DCS-5615 provides a complete solution for high quality live viewing and reliable recording. The camera also has a built-in microSD card slot which can be used for local backup by storing important events on a microSD card1.

Multiple Video Streams

The DCS-5615 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-5615 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

 Flexible Connectivity

The DCS-5615 includes an input port for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-5615 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.


Tamper-proof features make the DCS-5615 camera suitable for tamper‑prone locations such as schools, retail locations or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

D-ViewCam for Management

The included D-Link D-ViewCam video management software allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record important events directly to a hard drive. D-ViewCam also allows users to upload a floor plan to create a realistic layout of the premises where the cameras are located, further simplifying the management process.

1 microSD card not included

Technical Specifications:

D-Link DCS-5615 Specifications
Hardware Profile
  • 1/2.7" 2 Megapixel Full HD progressive CMOS sensor
  • Lens Focal length: 4 mm
  • Lens Aperture: F1.5
  • Field of view: 77° Horizontal, 45° Vertical
  • Minimum object distance: 16"
  • Minimum illumination: 0.12 lux
  • One-way audio with built-in microphone
  • 16x digital zoom
Pan & Tilt
  • Pan Range: 360° (-180° to +180°)
  • Pan Speed: 101°/second
  • Tilt Range: 80° (10° to 90°)
  • Tilt Speed: 101°/second
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • 3 Configurable motion detection windows
  • Flip & mirror
  • Configurable shutter speed, brightness, saturation, contrast, sharpness
Video Compression
  • Simultaneous H.264/MPEG-4/MJPEG format compression
  • H.264/MPEG-4 multicast streaming
  • JPEG for still images
Video Resolution
  • 1920 x 1080 at 15 FPS
  • 1600 x 904 at 20 FPS
  • 1360 x 768 at 25 FPS
  • 1280 x 720, 640 x 480, 384 x 216, 176 x 144 at 30 FPS
Audio Support
  • One-way audio with built-in microphone
  • G.711
  • MPEG-4 AAC
External Device Interface
  • 10/100 BASE-TX Fast Ethernet port with PoE
  • Digital Input for external sensor or alarm trigger
  • microSD card slot
  • 12V DC jack
Network Protocols IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP, HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP / RTSP/ RTCP, IP filtering, LLTD, QoS, CoS, Multicast, IGMP, SNMP, ONVIF compliant
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP authentication
  • HTTPS streaming
System Management
System Requirements for Web Interface
  • Operating system: Microsoft Windows 7, Vista, XP, 2000
  • Browser: Internet Explorer 7 or higher
D-ViewCam Video Management Software System Requirements
  • Operating system: Microsoft Windows 7, Vista, XP
  • Browser: Internet Explorer 7 or higher
  • Protocol: Standard TCP/IP
Event Management
  • Motion detection
  • Tamper detection
  • Event notification and uploading of snapshots/video clips via HTTP, email or FTP
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple event notification
  • Multiple recording methods for easy backup
Remote Management
  • Take snapshots/video clips and save to local hard drive via web browser
  • Configuration interface accessible via web browser
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions in web interface
  • Scheduled motion triggered, or manual recording options
General Specifications
Weight 7.4 ounces (210 grams)
Power Input 12V DC 1.5 A, 50/60 Hz, IEEE 802.3af PoE
Max. Power Consumption 5.8 W
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Operating Humidity Up to 90% non-condensingg
Storage Humidity 5% to 95% non-condensing
  • CE Class A
  • CE LVD (EN60965-1)
  • FCC Class A
  • ICES-003
  • C-Tick
  • Diameter: 4.6" (116 mm)
  • Heigh: 2.25" (57 mm)
Warranty 1-Year Warranty

Product Views:

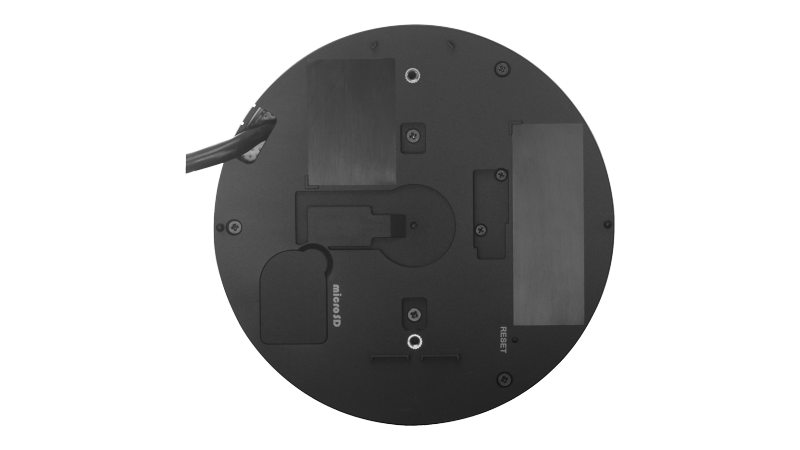

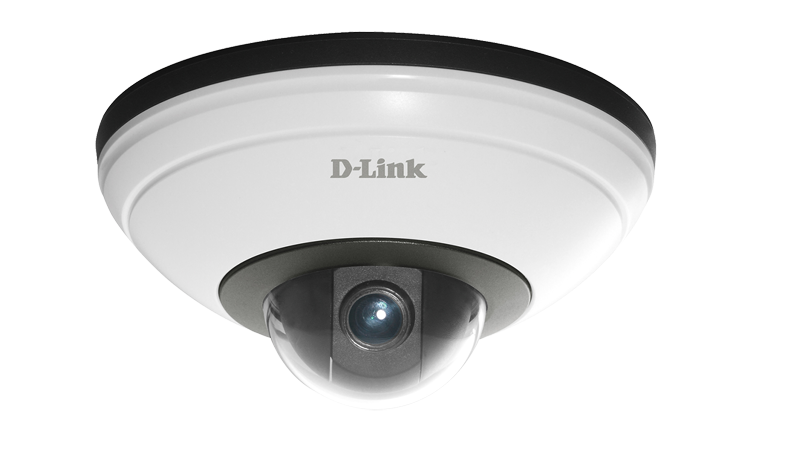

Front View Bottom View
Front View Bottom View


Download the D-Link DCS-5615 Datasheet (PDF).
