2 MP Full HD Indoor D/N Dome IP Camera
Sorry, this product is no longer available, please contact us for a replacement.
The DCS-6112 and DCS-6113 Full HD Fixed Dome IP Cameras feature 2 megapixel resolution (Full 1080p HD) and H.264 compression that enable high-quality video footage to be recorded. The DCS-6113 is capable of capturing video in both dark and light environment due to its built-in IR LEDs and mechanical IR-cut filter. Both cameras feature a 3-axis gimbal that allows for flexible observation area adjustment. With the free bundled D-ViewCam 32-channel recording software, these IP cameras provide a complete solution for high quality live viewing and reliable recording. The DCS-6112 and DCS-6113 also have a built-in microSD card slot which can be used for local backup by storing important events on a retrievable microSD card.
Full HD in an Aesthetic Indoor Dome

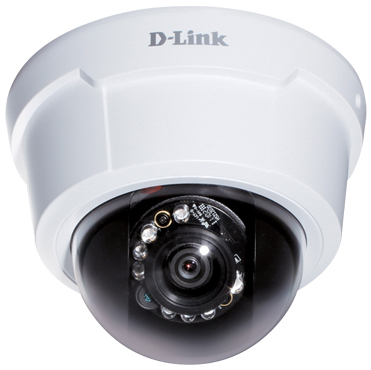

A great fit for retail, hospitality, education and general indoor surveillance, the DCS-6113 Day & Night Dome IP Camera features 2 megapixel resolution (Full 1080p HD) and H.264 compression that enable high-quality video footage to be recorded. The DCS-6113 features a 3-axis gimbal that allows for flexible installation and lens positioning and it also has a built-in microSD card slot which can be used for local backup by storing important events on a retrievable microSD card.
The DCS-6113 has an integrated mechanical IR filter and infrared LEDs to allow the viewing and recording of video even in complete darkness.
Multiple Video Streams
The DCS-6113 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. The DCS-6113 supports multiple independent streaming profiles, each with its own resolution, frame rate and codec.
Anti-tamper features make the DCS-6112 suitable for tamper-prone locations. The electronic tamper detection system can sense whenever the camera has been redirected, defocused, blocked or spray-painted, and respond promptly with a notification.
The DCS-6113 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It also incorporate Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.
D-Link stands behind the quality of the DCS-6113 with an industry leading 5-year limited warranty.1
Convenient Management with D-ViewCam
The included D-Link D-ViewCam™ is sophisticated software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive. D-ViewCam™ also allows you to upload a floor plan of your business, and create a realistic layout according to the locations of your cameras, further simplifying the management process.
Open Network Video Interface Forum (ONVIF) compliant
The Open Network Video Interface Forum (ONVIF) is a global standard for open IP video networking. The DCS-6113 is ONVIF compliant and therefore interoperable with other manufacturer’s ONVIF compliant Video Management Software and NVRs.
- 2 Megapixel CMOS progressive sensor
- Real-time H.264, MPEG-4 and Motion JPEG compression
- Full HD resolution (1080p) to capture crisp and clear video
- H.264, MJPEG & MPEG-4 compression codec for distribution and recording of high definition video
- Fixed lens 4.0 mm f1.5
- Max. resolution 1920x1080 at 15 fps, 720p at 30fps
- Four simultaneous streams
- Built-in mechanical IR-cut filter for day/night surveillance2
- Built-in IR LED to support dark environments with 0 lux illumination2
- 2 Alarm Inputs/ 1 Alarm Output
- Power over Ethernet(PoE)
- Tamper detection
- Motion detection
- Advanced event management
- ePTZ image manipulation
- microSDCard slot
- 2-way audio support
- 1 digital input/ 1 digital output
- Analog AV output(NSTC/PAL)
- 3GPP mobile surveillance
- IPv6, 802.1x,QoS, Cos
- Built-in Samba clientforNAS
|D-Link DCS-6112 Specifications|
|Field of View||Horizontal: 73.5°|
|External Device Interface||
|Connectivity||1 x 10/100BaseT (Ethernet) with PoE|
|System Requirements for Web Interface||
|D-ViewCam™ System Requirements||
|D-ViewCam™ Software Functionst||
|Power Input||12V DC 1.25 A, 50/60 Hz, 802.3af PoE|
|Max. Power Consumption||4.4 watts||5.3watts|
|Operating Temperatur||0° to 40° C (32 to 104° F)|
|Storage Temperature||-20° to 70° C (-4° to 158° F)|
|Weight||16.44 ounces (446 grams)||16.65 (472 grams)|
Download the D-Link DCS-6112 and DCS-6113 Datasheet (PDF).
