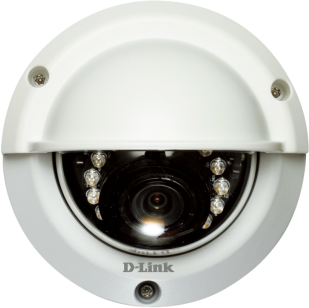

2 MP Full HD WDR Outdoor Dome IP Camera
Sorry, this product is no longer available, please contact us for a replacement.
The D-Link DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.
To maximise bandwidth efficiency and improve image quality, the DCS-6314 provides real-time video compression using the H.264, MPEG4, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to a network attached storage (NAS) device or internal Micro SD card.
The DCS-6314’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify objects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. In addition, the DCS-6314 also has built-in IR LED illuminators with a 45 feet range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.
Robust Management Software
The DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
The DCS-6314 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.
Five Year Warranty
D-Link stands behind the quality of the DCS-6314 with an included limited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*
Exceptional Video Quality
- 1/2.8" 2 megapixel progressive CMOS sensor
- Full HD resolution of (1920 x1080)
- Wide Dynamic Range image enhancement
- H.264, MPEG-4, MJPEG codec support for streaming and recording
- Motion detection
- Privacy mask
- Built-in IR LED illuminator with a 45 feet range for use in dark areas
- Range of mounting options for flexible placement
- Rugged IP68 weatherproof housing
- Weather shield to protect unit when surface mounted outdoors
- microSD/SDHC card slot for onboard storage
- 10/100 Fast Ethernet port with PoE ensures easy integration into your network
- DI/DO socket for connection to external devices
- Audio in and out jacks can be connected to a microphone and speaker for 2-way communication
|D-Link DCS-6314 Specifications|
|Camera Hardware Profile||
|External Device Interface||
|System Requirements for Web Interface||Browser: Internet Explorer, Firefox, Safari, Chrome|
|OS Support||Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android|
|D-ViewCam™ System Requirements||
|D-ViewCam™ Software Functionst||
|Power Consumption||10 +- 5% Watt|
|Operating Temperatur||-22° to 124° F (-30° to 50° C)|
|Storage Temperature||-4° to 158°F (-20 to 70 °C)|
|Operating Humidity||20% to 80% non-condensing|
|Storage Humidity||5% to 95% non-condensing|
|Weight||2.45 lbs (1112 grams)|
|Certifications||CE, CE LVD, FCC, C-Tick|
Sold Separately (Not Included with Camera)

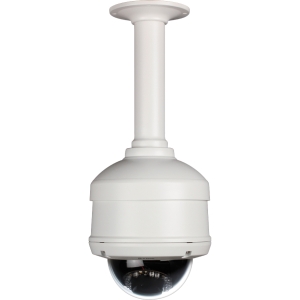

DCS-34-2 Pendant Mount

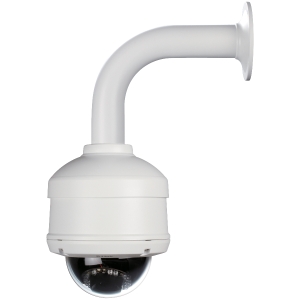

DCS-34-3 Bent Mount
Download the D-Link DCS-6314 Datasheet (PDF).
- Pricing and product availability subject to change without notice.
Our Price: $110.99
