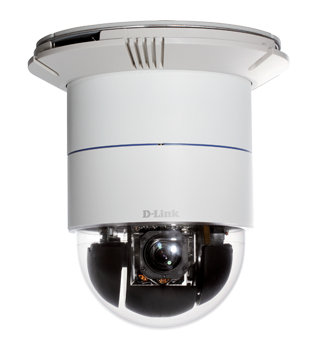

D-Link DCS-6616
12x Speed Dome Network Camera

D-Link DCS-6616

Sorry, this product is no longer available, please contact us for a replacement.


The DCS-6616 12X Speed Dome Network Camera is an indoor PTZ dome IP camera thatcan cover large areas and low-light environments. Built with a Sony Super HAD-II 1/4” CCDsensor, the DCS‑6616 can capture 650 TVL high-resolution video with excellent imagequality. A built-in IR cut mechanical filter allows the camera to capture video in bothbright and dark environments.

Versatile Pan/Tilt/Zoom (PTZ) Functionality

The DCS-6616 is built with an extensive set of PTZ features that allow large areas to bemonitored easily. Endless 360° panning allows the camera to sweep an area easily, and 12Xoptical zoom with auto focus provides the ability to zoom in and focus on an event for moredetail. Panning speed is variable and proportional to the zoom ratio for precise control overcamera movement. The DCS-6616 can also be set to follow preset sequence paths at setspeeds for customized automatic surveillance.

Wide Dynamic Range (WDR) Applications

The Wide Dynamic Range (WDR) function provides clear images even under backlitconditions where the intensity of illumination can vary significantly, making the DCS-6616perfect for extreme high-contrast environments. For example, the DCS-6616 will adjust itselfto the intense sunlight that may be streaming in through a window in the background. Thismakes it an ideal solution for lobbies, retail stores and shipping bays.

Flexible Connectivity

The DCS-6616 includes input and output ports that allow connectivity to externaldevices such as IR sensors, switches, and alarm relays. It includes audio input andoutput ports, and a video output for direct connection to a TV for live monitoring.

Multiple Video Streams

The DCS-6616 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, and is ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks.

D-ViewCam for Management

The included D-ViewCam™ IP camera surveillance software is a comprehensivesurveillance system designed to centrally manage multiple IP cameras. Supportingup to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and eventsfor various security applications. The D-ViewCam™ software is included free ofcharge with the DCS-6616.

Open Network Video Interface Forum (ONVIF) compliant

ONVIF is an open industry forum for the development of a global standard forthe interface of IP-based physical security products. ONVIF identifies a standardfor how IP products within video surveillance and other physical security areascan communicate with each other ensuring interoperability between productsregardless of brand. The DCS-6616 is ONVIF-compliant and therefore compatiblewith many third party Video Management Software (VMS) solutions.


  • Sony SuperHAD-II 1/4”CCDsensor
  • WDR/BLC for critical lightsources
  • Excellentimage quality and low light performance
  • Built-in mechanical IR cut filterfor day/ night surveillance
  • 12X optical zoom and 12X digital zoom
  • Focal length: 3.4 to 61.2 mm
  • Field of view (Horizontal): 60.8°to 3.6°
  • 650TVL high resolution video
  • 3Ddeinterlacing
  • 2D/3Dnoise reduction
  • Real-timeH.264, MPEG-4, and Motion JPEG compression
  • Simultaneous multi-stream support
  • 2-way audio support
  • 3GPP mobile surveillance
  • ONVIF-Certified
  • Built-in Samba clientforNAS
  • Privacy Mask feature
  • 8 alarm inputs/ 1 alarm output

Technical Specifications:

D-Link DCS-6616 Specifications
Hardware Profile
  • Sony Super HAD-II 1/4” CCD sensor
  • 650 TVL resolution
  • Minimum illumination: 0.1 lux (Color), 0.01 lux (B/W)
  • Built-in Infrared-Cut Removable (ICR) filter module
  • Electronic shutter: 1 to 1/10000 second
  • S/N ratio > 50 dB (AGC off)
  • 12x optical zoom
  • Fixed length: 3.8 to 45.6 mm
  • Aperture: F1.6 to F2.7
Field of View Horizontal: 52.8° to 4.49° / Vertical: 39.7° to 3.40°
PTZ Hardware Profile
  • Pan travel: 360° endless
  • Tilt travel: 10° to 170°
  • Manual speed: 1° to 80°/second
  • Presets: 256 points
  • Preset Accuracy: 0.225°
  • Preset Speed: 10° to 400°/second
  • Sequence Paths: 8
  • Auto Pan Paths: 4
  • Cruise Paths: 8
  • Pan and tilt speed proportional to zoom ratio
  • Resume after power loss
  • Home Functions: Preset, Sequence, Auto Pan, Cruise
  • Auto Flip: Mechanical/Digital/Off
  • Digital Slow Shutter
  • Image Freeze
  • Image Inverse
Image Features
  • Configurable image size, quality, frame rate, and bit rate
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 3 configurable privacy mask zones
  • Configurable white balance, shutter speed, brightness, saturation, contrast, and sharpness
Video Compression
  • H.264/MPEG-4/MJPEG simultaneous format compression
  • JPEG for still images
Video Resolution
  • NTSC: 720 x 480, 352 x 240, 176 x 120 at up to 30 fps
  • PAL: 720 x 576, 352 x 288, 176 x 144 at up to 25 fps
Audio Support G.726
External Device Interface
  • 10/100 BASE-TX Ethernet port
  • 8 alarm inputs
  • 1 alarm output
  • Audio input/output
  • Video output
Network Protocols
  • IPv4
  • TCP/IP
  • UDP
  • ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (D-Link)
  • SMTP Client
  • FTP Client
  • Samba Client
  • PPPoE
  • UPnP Port Forwarding
  • IP filtering
  • 3GPP
  • IGMP
  • ONVIF-Compliant
  • Administrator and user group protection
  • Password authentication
  • HTTP and RTSP digest encryption
System Management
System Requirements for Web Interface
  • Operating System: Windows 7,WindowsVista,Windows XP, Windows 2000
  • Browser: Internet Explorer, Mozilla Firefox, Netscape,Opera
Event Management
  • Motion detection
  • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP
  • Supports multiple HTTP, SMTP and FTP servers
  • Multiple event notification
  • Multiple recording methodsfor easy backup
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to local hard drive or NAS via web browser
Mobile Support Windows 7/Vista/XP system, Pocket PC, or mobile phone with 3GPP playback support
D-ViewCam System Requirements
  • Operating System: Microsoft Windows 7/Vista/XP
  • Web Browser: Internet Explorer 6 or higher
  • Protocol: Standard TCP/IP
D-ViewCam Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered or manual recording options
General Specifications
Power Input DC 12V/2A
Max. Power Consumption 14 watts
Environment IndoorOnly
Operating Temperature 32 to 104° F (0° to 40° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Humidity 20% to 80% non-condensing
Weight 1.23lbs (560 grams)
  • Height: 8.07”(205mm)
  • Diameter: 3.16”(131mm)
  • CE (Class A)
  • CE LVD (EN60965-1)
  • FCC (Class A)
  • ICES-003
  • C-Tick
Warranty 1-Year Limited Warranty

1 1-Year Limited Warranty available only in the USA and Canada.


Download the D-Link DCS-6616 Datasheet (PDF).
