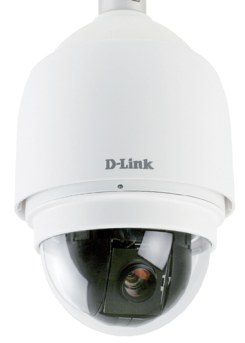

D-Link DCS-6818
36x High Speed Dome Network Camera

D-Link DCS-6818

Sorry, this product is no longer available, please contact us for a replacement.


The DCS-6818 High Speed 36x High Speed Dome Network Camera is a professional indoor/outdoor IP surveillance solution which connects to your network to provide high-quality live video over the Internet. The inconspicuous dome enclosure can be mounted in a variety of positions based on your needs.

Powerful Digital Surveillance

The D-Link DCS-6818 is a high-performance high speed dome network camera, ideal for business IP surveillance applications. The DCS-6818 employs Sony ¼” EX-View CCD technology to deliver exceptional picture quality. High-performance technology provides real-time video compression in H.264/MPEG-4 and MJPEG formats.

Proportional Pan, Tilt, and Zoom Speeds

Adjusting the camera is painless since the pan and tilt speed is proportional to the optical zoom ratio of the camera. When the camera zooms in, the panning speed is automatically slowed to improve camera tracking and controllability. PTZ presets allow the camera to monitor specified areas along predefined paths.

Weatherproof for Outdoor Use

The DCS-6818 camera apparatus is housed in a weatherproof enclosure (IP66 standard). A built-in heater and fan allows camera to operate in extreme environments at temperatures ranging from -40°C to 50°C.

Mechanical IR Cut Filter for Day and Night Monitoring

The IR Cut Filter can be manually applied, or set to automatically adjust based on lighting conditions. This feature enables the camera to capture crisp color images during the daytime, and grayscale images in low-light.

Wide Dynamic Range (WDR) Applications

The Wide Dynamic Range (WDR) function of a camera provides clear images even under backlit conditions where the intensity of illumination can vary significantly. The DCS-6818 is recommended for extreme high-contrast environments.

Robust Management Software

D-ViewCam is a software program that allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

Open Network Video Interface Forum (ONVIF)

ONVIF is an open industry forum for the development of a global standard for the interface of IP based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-6818 is ONVIF compliant and therefore compatible with many third party Video Management Software (VMS) solutions.


  • 36x Optical Zoom
  • Wide Dynamic Range (WDR)
  • 0.1 Lux (Color); 0.01 Lux (B/W)
  • 30 fps (NTSC) / 25 fps (PAL)
  • H.264/MJPEG and MPEG4 multi-profile
  • Pre/post buffer for video recording
  • Upload snapshots via e-mail
  • Upload video clips via FTP
  • Motion detection with configurable detection areas
  • FTP and e-mail event handle
  • 1/4” EX-View CCD Sensor
  • Day/Night: ICR
  • Manual/Auto Focus (AF)
  • Adjustable image size and quality
  • Time stamp and text overlays
  • Configurable motion detection windows
  • 360° pan capability
  • 8 Sequence presets
  • 16 Privacy masks
  • Extended temperature range: -40º C to +50º C
  • IP66 - rated

Technical Specifications:

D-Link DCS-6818 Specifications
Hardware Profile
  • 1/4" CMOS Sensor
  • 36x Optical Zoom
  • 12x Digital Zoom
  • Day / Night: ICR
  • 0.1 Lux (Color); 0.01 Lux (B/W)
  • 540 TVL
  • Electronic shutter speed 1/1 ~ 1/10K sec
  • Auto Gain Control(AGC)
  • Manual / Auto Focus(AF)
  • Manual / Auto Exposure(AE)
  • Manual / Auto WhiTe Balance(AWB)
  • Backlight Compensation(BLC)
  • Wide Dynamic Range (WDR)
Focal Length 3.4 to 122.4 mm
Angle of View Horizontal: 60.8° to 1.8°
Video Code Support
  • JPEG for still image
  • H.264/MPEG4/MJPEG triple format compression
Video Resolution
  • NTSC Support:
    • Up to 30 fps at 176 x 120,
    • Up to 30 fps at 352 x 240,
    • Up to 30 fps at 720 x 480
  • PAL Support:
    • Up to 25 fps at 176 x 144,
    • Up to 25 fps at 352 x 288,
    • Up to 25 fps at 720 x 576
Video Features
  • Adjustable image size and quality
  • Time stamp and text overlays
  • Configurable motion detection windows
Video Bit Rate Up to 3 Mbps
Network Protocols IPv4, DHCP, ARP, DNS, TCP/IP, DDNS (D-Link), HTTP, HTTPS, UPnP™ Port Forwarding, Samba, SMTP, PPPoE, NTP (D-Link), FTP, RTP, RTSP, UDP, RTCP, ICMP, 3GPP
System Management
Surveillance Software Functions
  • Remote management/control of up to 32 cameras
  • Management functions provided in web interface
  • Management functions provided in web interface- Internet
  • Scheduled motion triggered, or manual recording
Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save via web browser
System Requirements
  • Operating System: Microsoft Windows 2000, XP, Vista
  • Browser: Internet Explorer 6.0 or above
General Specifications
IO Port
  • 8 Alarm inputs
  • 1 Alarm output
Dome Operation
  • 360° pan capability
  • 8 Sequence presets
  • -10° ~ 190° Tilt travel
  • 16 Privacy masks
  • 0.225° Pan / Tilt preset accuracy
  • Auto-flip
  • 5° ~ 400° Pan / Tilt preset speed
  • Built-in heater and fan
  • 4 Cruise presets
  • IP66 standard
  • 4 Auto pan presets
  • Vandal-proof
Power Input AC 24V
Max. Power Consumption 65 W (with heater)
Operating Temperature -4° to 122° F (-20° to 50° C)
Storage Temperature -4° to 158° F (-20° to 70° C)
Operating Humidity 20% to 80% non-condensing
  • FCC
  • CE
  • RoHS
Warranty 1-Year Limited Warranty

1 1-Year Limited Warranty available only in the USA and Canada.


Download the D-Link DCS-6818 Datasheet (PDF).
