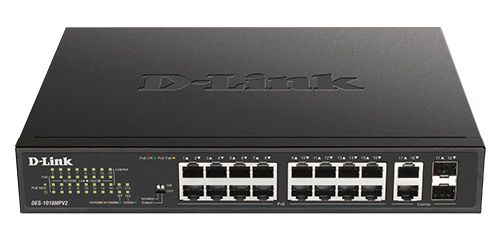

D-Link DES-1018MPV2
18-Port 10/100BASE-TX PoE Unmanaged Switch

D-Link DES-1018MPV2

D-Link Products
D-Link Unmanaged Ethernet Switches
18-Port 10/100BASE-TX PoE Unmanaged Switch
including 16 x 10/100 Mbps PoE + 2 x 10/100/1000BASE-T/SFP Combo Ports
#DES-1018MPV2
List Price: $325.99
Our Price: $309.69

Click here to jump to more pricing!

Overview:

Combining the convenience of PoE, optimized performance, reliability, and ease of use, the 18-Port Fast Ethernet PoE Switch with 2 Gigabit uplink ports is the ideal choice for adding PoE devices to a network.


PoE+ Support
16 ports provide up to 30W per port to even the most power-hungry devices

Surge protection
Protection from power surges and lightning

Far-Reaching Connectivity
Extended range of up to 250m


Plug and Play
Simple plug and play installation with auto-MDI/MDIX crossover on all ports

Multiple Port Modes
Isolated mode and Extend Mode

Energy Efficient Ethernet
Cut operating costs without sacrificing performance

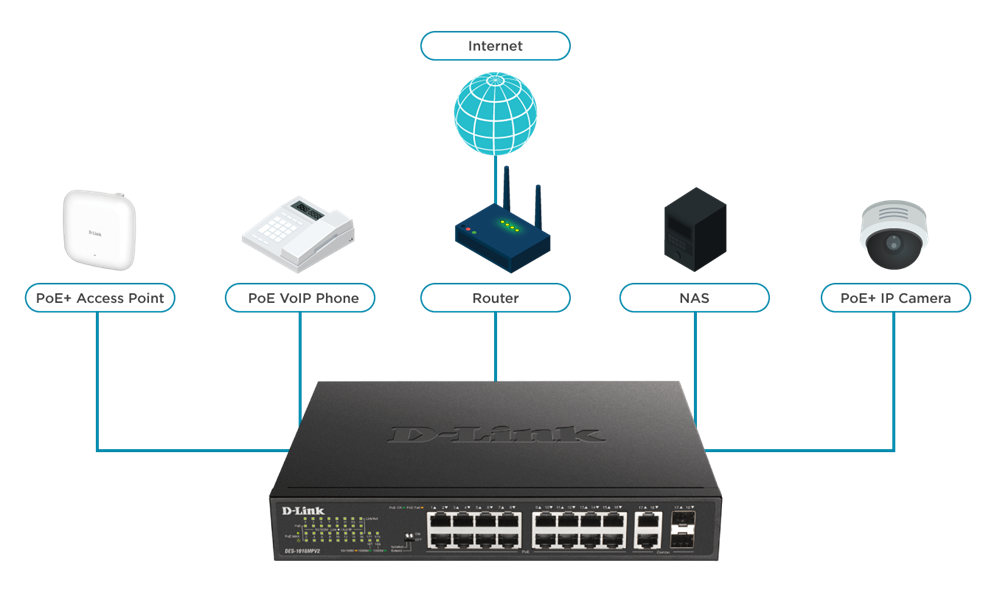

All Your Home or Small Business Devices Under One Banner

The DES-1018MPV2 is specifically designed to facilitate easy connections and supply of power to devices such as access points (AP) or IP cameras and phones. But that’s not all, connect other Ethernet devices such as computers, printers and NASs to unify all your devices under one efficient network ready for any application.

Far-Reaching Connectivity

The DES-1018MPV2 features two operating modes: Isolation or Extended mode, each with their own use cases. If both modes are deactivated, ports offer 10/100 Mbps PoE connectivity as standard, with ports 1 to 8 prioritized to optimize the port cache.

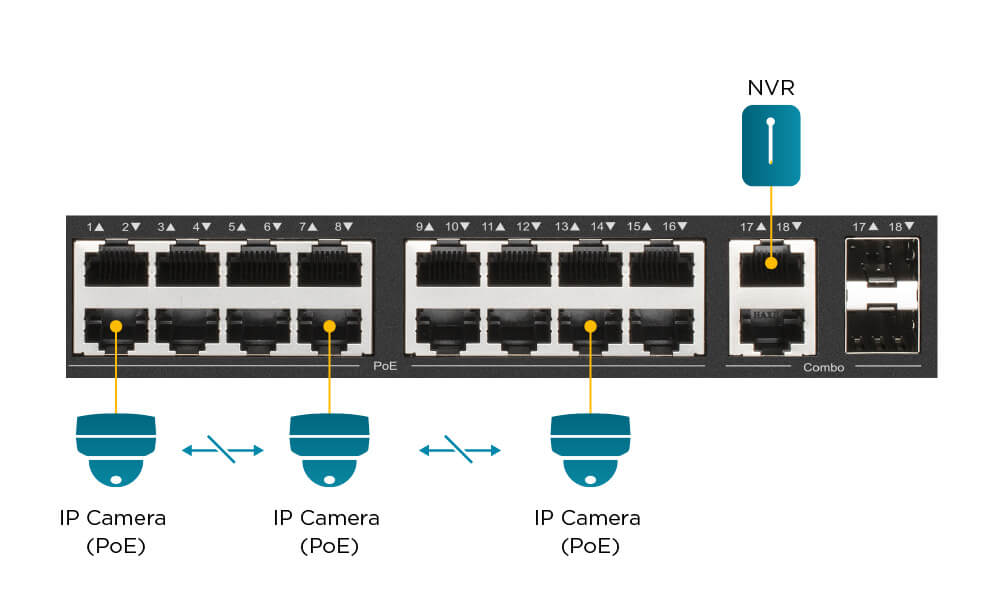

Isolation Mode
Isolation mode prevents port-to-port communications, permitting ports 1-16 to communicate solely through uplink ports 17-18, where strengthened security measures are necessary.

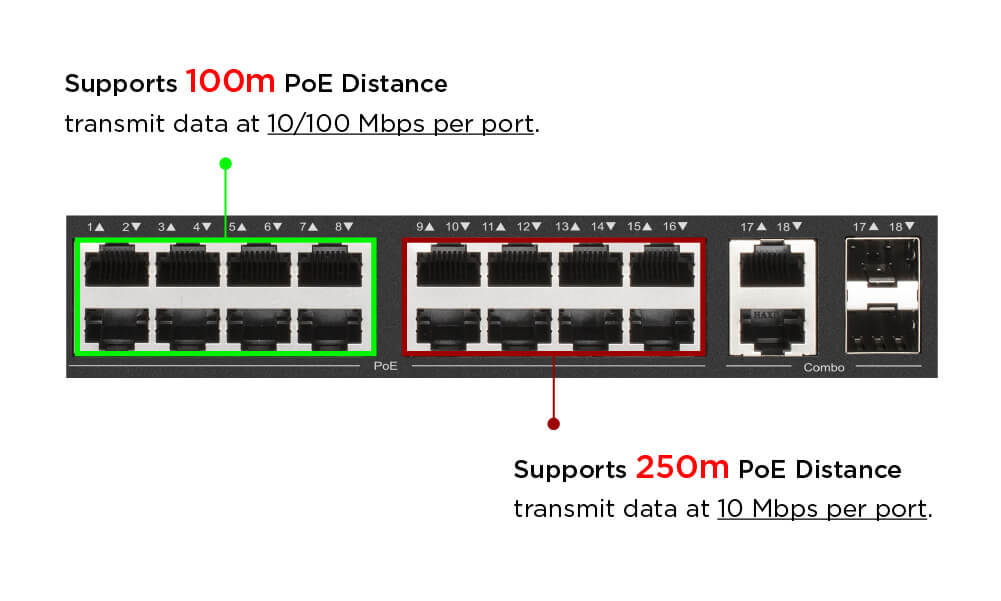

Extended PoE Mode
Have a device more than 100m away? Extend mode facilitates long-range power delivery by enhancing ports 9 to 16 to supply power to devices up to 250m away.


Better For Your Budget, Better For The Planet

To help balance the budget, the DES-1018MPV2 supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature detects network activity, automatically putting unused ports to sleep and powering them on as required.

The smart fan also automatically adjusts itself to reduce power consumption and noise when possible, so businesses can reinvest savings back into their business.

Features:

Flexible Connection

  • 16 10/100Mbps PoE ports
  • 2 Gigabit Combo ports for different switch fabric

Easy Setup

  • Plug-and-play installation
  • Auto MDI/MDIX crossover for all ports

Adequate PoE Power Budget

  • Supports IEEE 802.3af/at standard
  • Each port supports up to 30 watts, with a total PoE budget of 247 watts

Long-Reach Connectivity

  • Reach up to 250 m longer distances
  • Limited to 10 Mbps speed on port 9-16

Security Port Isolation

  • Effective method for uplink connection
  • Constraint communication between port 1-16 and uplink ports

Technical Specifications:

D-Link DES-1018MPV2 Specifications
General
Device Interfaces
  • 16 x 10 / 100 Mbps PoE ports
  • 2 x 10 / 100 / 1000BASE-T / SFP combo ports
Standards
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3z
  • IEEE 802.3x Flow Control
LED
  • Per unit: Power
  • Per port: Activity / Link and Speed
  • Per PoE port: Power fail, Power OK
General
Switching Capacity 7.2 Gbps
Transmission Method Store-and-forward
MAC Address Table 16k
Packet Buffer 512 Kbytes
Media Forwarding Rate 5.35 Mpps
PoE Standard IEEE 802.3af/at
PoE Power Budget 247 watts
PoE Ports Ports 1~16 up to 30 W per port
Physical
Dimensions 11” x 8.3” x 1.7” (280 mm x 230 mm x 44 mm)
Weight 2 kg (4.41 lbs)
Power Internal AC input: 100 ~ 240 VAC, 50~60 Hz
Power Consumption
  • Maximum Power Consumption: 294.4 watts (PoE on), 9.94 watts (PoE off)
  • Standby Power Consumption: 9.59 W/100 V , 9.72 W / 240 V
Temperature
  • Operating: 32 to 104 ˚F (0 to 40 ˚C)
  • Storage: -40 to 158 ˚F (-40 to 70 ˚C)
Humidity
  • Operating: 0% to 95% RH non-condensing
  • Storage: 0% to 95% RH non-condensing
MTBF 467,815 hours
Heat Dissipation 161.7 BTU/h
Certifications
  • FCC
  • VCCI
  • CE
Safety
  • CB
  • UL
  • LVD
Warranty Information
Warranty Limited Lifetime Warranty

Documentation:

Download the D-Link DES-1018MPV2 Datasheet (PDF).
