D-Link DES-102F
2-Port 100BASE-FX Fiber Module for DSS-24+

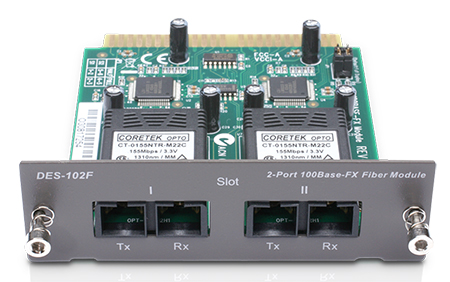

D-Link DES-102F 2-Port 100BASE-FX Fiber Module for DSS-24+

Sorry, this product is no longer available, please contact us for a replacement.

The DES-102F is an optional slide in module for the DSS-24+ Switch, and provides a two port 100BASE-FX Fast Ethernet connection. The DES-102F increases connection distances without requiring signal regeneration using a repeater to re-boost the signal. With the two SC type port connectors, connection utilizing a multimode fiber link can be initiated to servers or backbone switches for network expansion. DES-102F is targeted at small and medium businesses.

The DES-102F is compliant with IEEE 802.3u 100BASE-FX standard, supporting both auto-negotiation at full duplex modes and flow control signaling on each individual port. The DES-102F supports all of the Layer 2 functionality of the DSS-24+.

D-Link DES-102F Specifications
  • 100BASE-FX (SC-Type Connector)Multimode fiber
  • IEEE 802.3u 100BASE-FX Compliant
  • All Ports support Full Duplex and Half Duplex Operations
  • 2-Port 100 Mbps
EMI Based on the DSS-24+ EMI
  • FCC Class A
  • CE Mark Class A
  • VCCI Class A
  • BSMI Class A
  • C-Tick Class A
Weight 0.56 Lbs
Dimensions 7 ½ x 10 ½ x 2.0
