D-Link DGS-1016A
16-Port Gigabit Unmanaged Desktop Switch

D-Link DGS-1016A

Sorry, this product is no longer available, please contact us for a replacement.


D-Link Green

The D-Link DGS-1016A 16-Port Gigabit Unmanaged Switch and the DGS-1024A 24-Port Unmanaged Gigabit Switch each offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.

Gigabit on Every Port
The 16/24-Port Unmanaged Gigabit Switch series brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Innovative Design
The sleek plastic case of the DGS-1016A/1024A series is an industry first for a Gigabit SOHO/SMB switch. Using a compact desktop style helps reduce heat levels and allow for a fanless design, making the switches silent, as well as economical. The 16/24-Port Unmanaged Gigabit Switch series is small, lightweight, wall-mountable, and ideal for any business with big needs and a small budget.

Conserves Energy
The 16/24-Port Unmanaged Gigabit Switch series helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.

Think Green
The DGS-1016A/1024A 16/24-Port Gigabit Unmanaged Desktop Switch series makes use of D-Link Green Ethernet technology, providing more energy savings and a longer product life, without sacrificing operational performance or functionality. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances.



  • 16 or 24 Gigabit Ethernet ports for fast network speeds
  • Industry-first plastic case for a compact size
  • Fanless design for silent operation


  • IEEE 802.3x Flow Control
  • Auto MDI/MDI-X crossover for all ports
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • Supports 9,216 Bytes Jumbo Frames

Energy Efficiency

  • Innovative D-Link Green Ethernet Technology conserves energy
  • Link status detection reduces power usage
  • Cable length detection uses energy more efficiently
  • 802.3az EEE hardware implementation reduces power consumption when usage is low
  • RoHS compliant

Easy Installation

  • Plug-and-play installation

Technical Specifications:

D-Link DGS-1016A Specifications
  DGS-1016A DGS-1024A
Number of Ports Sixteen 10/100/1000 Gigabit ports Twenty-four 10/100/1000 Gigabit ports
Switching Capacity 32 Gbps 48 Gbps
Port Standard & Functions
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
Data Transfer Rates
  • Ethernet:
    • 10 Mbps (half duplex)
    • 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex)
    • 200 Mbps (full duplex)
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max)
    • EIA/TIA-586 100-ohm STP (100 m max)
  • 100BASE-TX, 1000BASE-T:
    • UTP CAT 5/5e (100 m max)
    • EIA/TIA-568 100-ohm STP (100 m max)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators
  • Per port: Link/Activity/Speed
  • Per device: Power
Transmission Method Store-and-forward
MAC Address Table 8k 16k
MAC Address Learning Automatic update
MAC Address Filtering/Forwarding Rates
  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port
  • Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer 2Mbits 3.5Mbits
Jumbo Frames 9216 Bytes
D-Link Green
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • Cable length detection power saving
  • RoHS Compliance
Physical & Environmental
Power Inputs Switching 12V/1A level V power adapter Switching 12V/1.5A level V power adapter
Power Consumption Power On (Standby): AC input: 3.12 Watts
Power Max.: AC input: 7.89 Watts
Power On (Standby): AC input: 6.86 Watts
Power Max.: AC input: 14.17 Watts
Heat Dissipation Power On (Standby): AC input: 10.65 BTU/h
Power Max.: AC input: 26.92 BTU/h
Power On (Standby): AC input: 23.41 BTU/h
Power Max.: AC input: 48.35 BTU/h
MTBF 527,308 hours 401,516 hours
Operating Temperature 32 to 104 °F (0 to 40 °C)
Storage Temperature 14 to 158 °F (-10 to 70 °C)
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 90% non-condensing
Dimensions (W x D x H) 9.1 x 6.2 x 1.8 inches (231 x 158 x 46 mm) 10.1 x 7.0 x 1.8 inches (257 x 178 x 46 mm)
Weight 1.28 lbs. (580g) 1.68 lbs. (760g)
  • FCC Class A
  • ICES-003 Class A
  • CE Class A
  • uCL
  • CB
  • VCCI Class A
  • C-Tick Class A
Warranty Limited Lifetime*

* Limited Lifetime Warranty available only in the USA and Canada. All references to speed are for comparison purposes only.

Product Views:

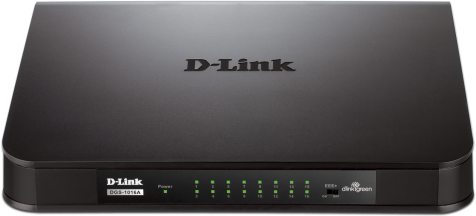

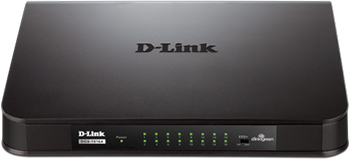

D-Link DGS-1016A Front View

D-Link DGS-1016A Back View
D-Link DGS-1016A Front View D-Link DGS-1016A Back View

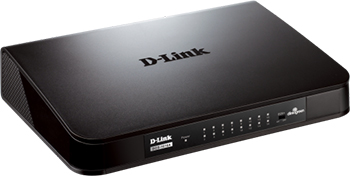

D-Link DGS-1016A Right Angle View
D-Link DUB-H4 Side View


Download the D-Link DGS-1016A/1024A Series Datasheet (PDF).
