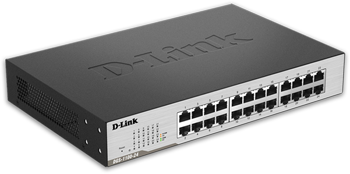

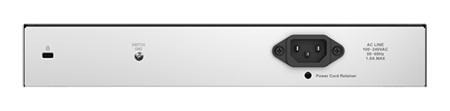

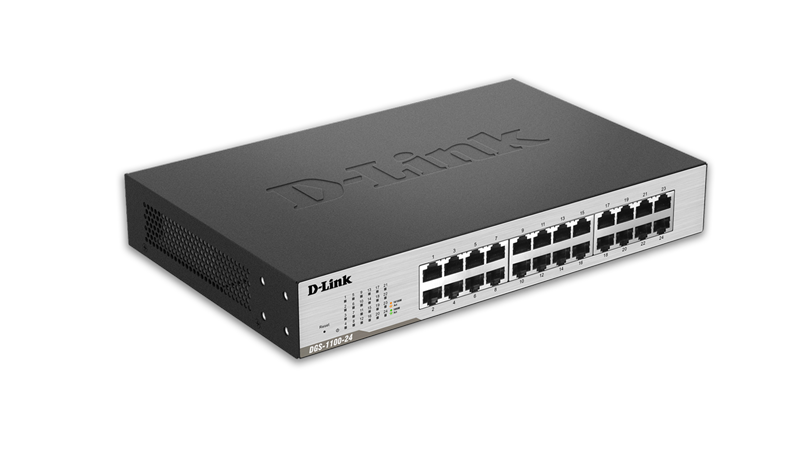

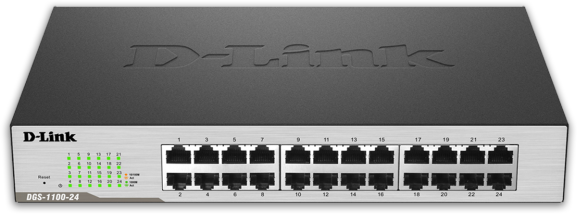

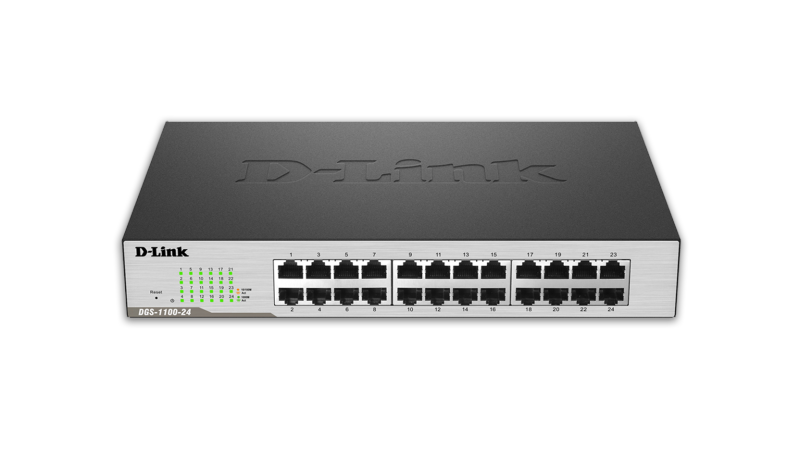

24-Port Gigabit Smart Managed Rackmount Switch
Sorry, This product is no longer available. Please Contact Us for a replacement.
D-Link’s DGS-1100 Series Gigabit Smart Managed Switches provide an affordable solution for businesses of all sizes that require simple network management. The DGS-1100 switches consist of 5, 8, 10,16, 24 and 26 Gigabit port models with a wide variety of functions and features. The 5 and 8 port models come in compact metal desktop enclosures, while the 10, 16, 24 and 26 port models come in metal enclosures that support either desktop or rack mounting. Four models support 802.3af/at Power over Ethernet (PoE), with a range of PoE power budgets from 64W to 370W. There is also a PoE-powered model that has the ability to passthrough power to one or two PoE devices downstream.
D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), these switches consume less energy by cutting down on power consumption when port utilization is low. By deploying EEE devices, users can cut operating costs and reduce necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 switches also feature D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and reduce power consumption on the interface when there is no link or no network traffic detected.
Easy to deploy
The DGS-1100 switches support an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface. The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any networkconnected PC.
Surveillance VLAN and Bandwidth Control
The DGS-1100 switches support Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This also ensures security, and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance networking hardware. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.
The DGS-1100 Series switches are equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
The DGS-1100 Series switches feature Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DGS-1100 Series Gigabit Smart Managed Switches to further its commitment to product quality and long-term customer confidence.
D-Link Green Technology
- Link Status detection
- IEEE 802.3az Energy Efficient Ethernet compliant
Advanced L2 Switching Features
- IGMP Snooping
- Bandwidth Control
- 802.1Q VLAN for traffic segregation
- Port-based VLAN
- 802.1p Quality of Service
- Surveillance VLAN and Voice VLAN
Quality of Service
- Auto Surveillance VLAN
- Auto Voice VLAN
- Loopback Detection auto disables port when a loop is detected
- Cable Diagnostics
- Client-based utility or Web-based GUI
|D-Link DGS-1100 Series Specifications|
|Hardware Version||Rev. B||Rev. B||Rev. B||Rev. B||Rev. B||Rev. B||Rev. B|
|Port Standard & Functions||
|Max. Forwarding Rate||7.4 Mpps||7.4 Mpps||11.9 Mpps||11.9 Mpps||23.81 Mpps||35.71 Mpps||35.71 Mpps|
|MAC Address Table||2K Entries||2K Entries||4K Entries||4K Entries||8K Entries||8K Entries||8K Entries|
|Packet Buffer||1 Mbits||1 Mbits||1.5 Mbits||1.5 Mbits||512KBytes||512KBytes||512KBytes|
|Flash Memory||2 Mbytes||2 Mbytes||2 Mbytes||2 Mbytes||8 MBytes||8 MBytes||8 MBytes|
|Power over Ethernet|
|PoE Capable Ports||-||Ports 1-2 (PSE)
Port 5 (PD)
|-||Ports 1-8||-||-||Ports 1-12|
|PoE Power Budget||-||18W with 802.3at input power
8W with 802.3af input power
|Physical & Environmental|
|Power Input||100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply||802.3af/at PoE input only (no external Pwr Supply)||100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply||100 to 240 VAC; 50 to 60 Hz External Universal Pwr Supply||100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply|
|Max. Power Consumption||3.42 W||23.92 W (PoE on)
2.32 W (PoE off)
|4.94 W||77.9 W (PoE on)
4.6 W (PoE off)
|9.3 W||13.9 W||128.3 W (PoE on)
21.2 W (PoE off)
|Standby Power Consumption||1.39 W||1.46 W||11.93 W||2.0 W||8.0 W||10.4 W||13.0 W|
|Acoustics||0 dB(A)||0 dB(A)||0 dB(A)||0 dB(A)||0 dB(A)||0 dB(A)||41.9 dB(A) rev B1
27.6 dB(A) rev B2
|Heat Dissipation||11.67 BTU/hr||N/A||16.85 BTU/hr||265.85 BTU/hr||31.8 BTU/hr||47.6 BTU/hr||437.9 BTU/hr|
|Operating||32˚F to 104˚F (0˚C to 40˚C)|
|Storage Temperature||-40˚F to 158˚F (-40˚C to 70˚C)|
|Operating Humidity||0% to 90% non-condensing|
|Storage Humidity||0% to 95% non-condensing|
|Dimensions (W x D x H)||3.96” x 3.23” x 1.10”
(100.5 x 82 x 28 mm)
|5.91” x 3.82” x 1.10”
(150 x 97 x 28 mm)
|5.71” x 3.23” x 1.10”
(145 x 82 x 28 mm)
|6.73” x 3.85” x 1.13”
(171 x 97.8 x 28.6 mm)
|11” x 7.1” x 1.73”
(280 x 180 x 44 mm)
|11” x 7.1” x 1.73”
(280 x 180 x 44 mm)
|11” x 9.1” x 1.73”
(280 x 230 x 44 mm)
|Weight||0.51 lbs (0.23 kg)||0.84 lbs (0.38 kg)||0.75 lbs (0.34 kg)||0.95 lbs (0.43 kg)||3.37 lbs (1.53 kg)||3.59 lbs (1.63 kg)||4.73 lbs (2.15 kg)|
|EMI Certifications||FCC Class B, CE Class B, VCCI Class B, BSMI, CCC||FCC Class A, CE Class A, VCCI Class A, BSMI, CCC|
|Safety||cUL, CE LVD, CB, BSMI, CCC|
|MTBF||1,562,055 hours||2,346,941 hours||1,456,992 hours||786,841 hours||2,827,541 Hours||2,406,109 Hours||563,292 Hours|
1 Limited Lifetime Warranty available in U.S.A. only.
2 D-Link Network Assistant Utility Available for Hardware Rev. B only.
3 SmartConsole Utility Available for Hardware Rev. A only.
Download the D-Link DGS-1100 Series Datasheet (PDF).
