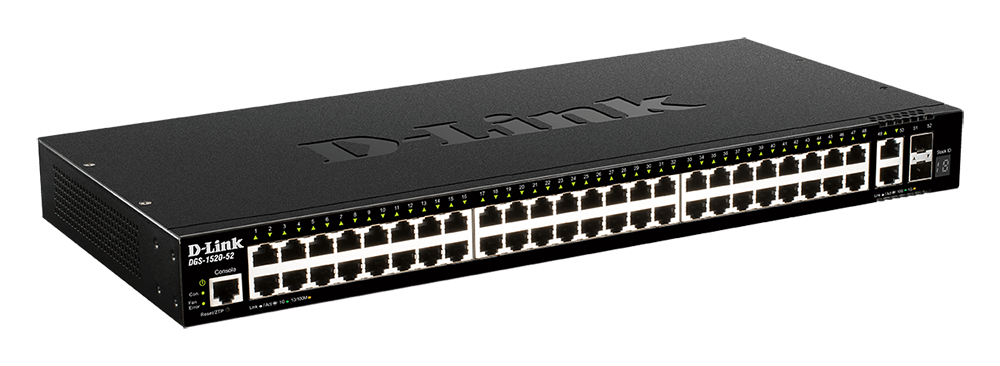

D-Link DGS-1520-52
52-Port Gigabit Smart Managed Switch With 2 10G SFP+ and 2 10GBASE-T Ports
List Price:
Our Price: $1,662.49
Click here to jump to more pricing!
Overview:
The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers.
Stackable Smart Gigabit
Stack up to eight switches for high-density Gigabit aggregation
Zero Touch Provisioning
Effortless multi-site deployment
Multi-Gigabit Ports
Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models)
Flexible Stacking or Uplink
10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink
High Capacity
Up to 188 Gbps switching capacity per switch
PoE Capable
Up to 370 W PoE output per switch
Power Redundancy
Connect with DPS-520 for power redundancy (non-PoE models)
Advanced Manageability
Supports dynamic routing and selective Q-in-Q tagging
High Availability
The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch Provisioning
Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Multi-Gigabit Support
Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.
* For DGS-1520-28MP & DGS-1520-52MP only
Powerful Stacking Capability
Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.
Minimize Outages with Power Redundancy
For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
- Auto Discovery: Automatically detect power requirements of connected PD devices.
- RPS Port Priority: Enables administrators to define RPS failover policy.
- Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.
Low Network Latency, High PoE Budget
High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.
*DGS-1520-28MP/52MP
Enhanced Manageability for Peace of Mind
D-View 7
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
D-Link Network Assistant
Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.
Features:
High Availability and Flexibility
- 24 or 48 x 10/100/1000Base-T ports
- 20 or 44 x 10/100/1000Base-T PoE and 4 x 2.5GBase-T PoE ports
- 2 x 10GBase-T and 2 x SFP+ uplink ports
High Bandwidth Stacking
- Physical Stacking of up to 8 units
- 2 x 10GBase-T and/or 2 x SFP+
- 80 Gbps physical stacking bandwidth
Advanced L2 features
- RSPAN
- Selective Q-in-Q
Advanced L3 features
- IGMP v1/v2/v3
- MLD v1/v2
- PIM-SM/DM/SSM
- Static Route
- RIP/RIPng
- OSPF
Reliability and Resiliency
- Ethernet Ring Protection Switching (ERPS)
- Virtual Router Redundancy Protocol (VRRP)
- Redundant Power Supply (RPS) support
Management, Provisioning and Automation
- D-View 7
- D-Link Network Assistant (DNA)
- Zero Touch Provisioning (ZTP)
Diagram:
Application Scenario
Technical Specifications:
D-Link DGS-1520 Series Specifications | ||||
---|---|---|---|---|
DGS-1520-28 | DGS-1520-28MP | DGS-1520-52 | DGS-1520-52MP | |
General | ||||
Hardware Version | A1 | A1 | A1 | A1 |
Console Port | 19” standard rack width, 1U height | |||
Interfaces | 24 x 10/100/1000Base-T Ports 2 x 10GBase-T Ports 2 x 10G SFP+ Ports |
20 x 10/100/1000Base-T PoE Ports 4 x 2.5GBase-T PoE Ports 2 x 10GBase-T Ports 2 x 10G SFP+ Ports |
48 x 10/100/1000Base-T Ports 2 x 10GBase-T Ports 2 x 10G SFP+ Ports |
44 x 10/100/1000Base-T PoE 4 x 2.5GBase-T PoE Ports 2 x 10GBase-T Ports 2 x 10G SFP+ Ports |
Standards |
|
|||
Media Interface Exchange | Auto or configurable MDI/MDIX | |||
LED |
|
|||
Functionality | ||||
Switching Capacity | 128 Gbps | 140 Gbps | 176 Gbps | 188 Gbps |
Transmission Method | Store-and-forward | |||
MAC Address Table | Up to 16,384 entries per device | |||
Static MAC Addresses | Up to 512 static MAC entries | |||
Maximum Forwarding Rate | 95.24 Mbps | 104.16 Mbps | 130.95 Mbps | 139.88 Mbps |
PoE Standard | N/A | IEEE802.3at, IEEE802.3af |
N/A | IEEE802.3at, IEEE802.3af |
PoE Power Budget | N/A | 370 W, 740 W (with RPS) | N/A | 370 W, 740 W (with RPS) |
Physical & Environmental | ||||
Power Input | 100 to 240 VAC | |||
Maximum Power Consumption | 30.4 W | 453.3 W (PoE On); 45.2 W (PoE Off ) |
51.2 W | 459.5 W (PoE On); 66.3 W (PoE Off ) |
Standy Power Consumption | 20.9 W/100 V; 21.5 W/240 V |
37.2 W/100 V; 37.3 W/240 V |
25.5 W/100 V; 26.8 W/240 V |
39.8 W/100 V; 40.7 W/240 V |
Acoustic | 51.8 dB(A) | 57.1 dB(A) | 56.8 dB(A) | 56.7 dB(A) |
Heat Dissipation | 103.7 BTU/hr | 1545.8 BTU/hr | 174.6 BTU/hr | 1635.1 BTU/hr |
MTBF | 468252 Hours | 333946 Hours | 364888 Hours | 328174 Hours |
Operating Temperature | -5 to 50 °C (23 to 122 °F) | |||
Storage Temperature | -40 - 70 °C (-40 - 158 °F) | |||
Operating Humidity | 10% to 95% non-condensing | |||
Storage Humidity | 5% to 95% non-condensing | |||
Dimensions (W x D x H) | 441 x 207.4 x 44 mm (17.36 x 8.17 x 1.73 in) |
441 x 308.5 x 44 mm (17.36 x 12.15 x 1.73 in) |
441 x 207.4 x 44 mm (17.36 x 8.17 x 1.73 in) |
441 x 308.5 x 44 mm (17.36 x 12.15 x 1.73 in) |
Weight | 2.33 kg (5.14 lbs) | 4.29 kg (9.46 lbs) | 2.78 kg (6.13 lbs) | 4.80 kg (10.58 lbs) |
Certifications | CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A | |||
Software Features | ||||
Stackability |
|
|||
L2 Features |
|
|||
L2 Multicasting |
|
|||
VLAN |
|
|||
L3 Features |
|
|||
L3 Routing |
|
|||
L3 Multicasting |
|
|||
QoS (Quality of Service) |
|
|||
Access Control List (ACL) |
|
|||
Security |
|
|||
Authentication, Authorization, and Accounting (AAA) |
|
|||
Green Features |
|
|||
Operation, Administration and Maintenance (OAM) |
|
|||
Management |
|
|||
Warranty Information | ||||
Warranty | Limited Lifetime |
Documentation:
Download the D-Link DGS-1520 Series Datasheet (PDF).
