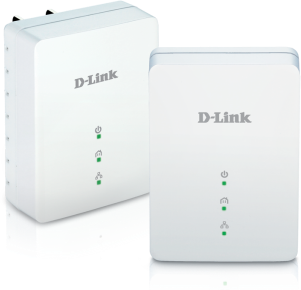

D-Link DHP-209AV
PowerLine AV 200 Mini Adapter Starter Kit

D-Link DHP-209AV

Sorry, this product is no longer available, please contact us for a replacement.


Overview:

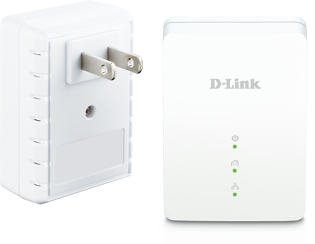

DHP-209AV Rear View

Transform your Home’s Electrical Wiring into a Reliable Network

The D-Link PowerLine AV 200 Mini Adapter Starter Kit (DHP-209AV) delivers fast wired connectivity to the hard-to-reach areas of your home – perfect for everyday web activities like multimedia streaming, web surfing and video chatting. Rather than using long and unsightly cables to get your devices online, the DHP-209AV instantly transforms your home’s existing electrical circuit into a stable wired network, making it quick and easy to connect computers, printers, and other Ethernet-enabled devices. The DHP-209AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.

Plug and Play Installation
Setting up your PowerLine adapters could not be any easier – just connect each adapter to your Ethernet-enabled devices, hit the simple connect button on each adapter, and you're ready to go! It's that simple!

Scalable to your Needs
If you're looking to connect more than just one wired device to your network with PowerLine, simply connect additional adapters. D-Link's various PowerLine solutions are interchangable with one another, so even if you have older PowerLine models, compatibility won't be an issue.

Features:

Package Contents

  • 2 PowerLine AV 200 Mini Adapters (DHP-208AV)
  • 2 Ethernet Cables
  • Quick Install Guide5

Minimum System Requirements

  • 10/100 Ethernet device(s)
  • Two Available Power Outlets2

For Internet Access:

Computer with:

  • Windows® 76, Windows® 86, or Mac OS® X (v10.7)
  • 233MHz Processor
  • 10MB Disk Space
  • 64MB RAM
  • Network Interface Card

Power Supply:

  • 100~240VAC, 50/60Hz

For Internet Access:

  • Cable or DSL Modem
  • Router
  • Subscription with an Internet Service Provider (ISP)

For Network:

  • 2 or more PowerLine AV Devices

For optimal wireless or PowerLine performance use with D-Link PowerLine Products:

  • PowerLine AV 200 Mini Adapter Starter Kit (DHP-209AV)
  • PowerLine AV 500 Network Kit (DHP-309AV)
  • PowerLine AV 500 Wireless N Extender (DHP-W310AV)
  • PowerLine AV 500 Wireless Extender Kit (DHP-W311AV)
  • PowerLine AV2 600 Gigabit Starter Kit (DHP-601AV)
2 Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring conditions and configuration may affect the performance of this product. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug adapter directly into a power outlet. 3 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase.
5 Latest Software and Documentation available at http://support.dlink.com.
6 Computer must adhere to Microsoft’s recommended System Requirements.

Technical Specifications:

D-Link DHP-209AV Specifications
Standard
  • IEEE 802.3
  • HomePlug AV
Ethernet Interface 10/100Mbps Fast Ethernet
Maximum PHY Rate 200Mbps
Security 128-bit AES Data Encryption
Input Power 100V ~ 240V, 50/60 Hz
LEDs
  • Power
  • PowerLine
  • LAN
Power Saving Power Saving Mode Supported
Power Consumption < 2.5W at Power On Mode
Operating Temperature 33° to 104°F (0 ℃ to +40℃)
Operating Humidity 10% to 90% non-condensing
EMC Certifications
  • FCC
  • CE
Safety Certifications
  • UL
  • CE/LVD
Dimensions 67.5 x 47.7 x 25mm
Weight TBD
Warranty 1-Year Limited Warranty4
4 1-Year Limited warranty available only in the USA and Canada.

Diagram:

How It Works
PowerLine gives you the flexibility to create the network you need in the space you have, by using your electric wiring to connect computers and other devices. It’s a simple solution to what can be a sticky networking situation. Simply plug one into a wall outlet and connect it to your network router, and plug another into a different wall outlet and connect it to your computer or other device using the included Ethernet cable. Once they’re plugged in, you’re good to go.

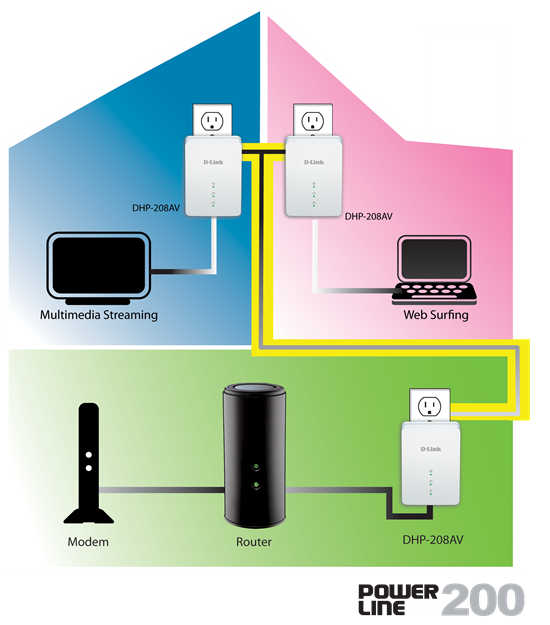

DHP-209AV House Diagram

Documentation:

Download the D-Link DHP-209AV Datasheet (PDF).
