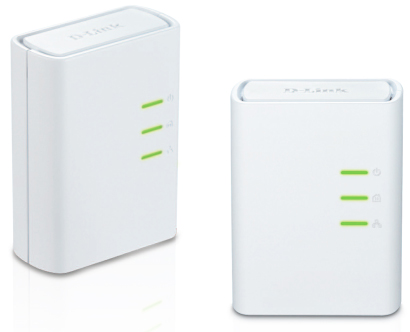

D-Link DHP-309AV
PowerLine AV + Mini Adapter Starter Kit

D-Link DHP-309AV

Sorry, this product is no longer available, please contact us for a replacement.


Bottom View

Extend Your Network

The D-Link PowerLine AV500 Network Kit (DHP-309AV) delivers fast wired connectivity to the hard-to-reach areas of your home – perfect for everyday web activities like multimedia streaming, web surfing and video chatting. Rather than using long and unsightly cables to get your devices online, the DHP-309AV instantly transforms your home’s existing electrical circuit into a stable wired network, making it quick and easy to connect computers, printers, and other Ethernet-enabled devices. The DHP-309AV is the ideal solution for getting connected in spaces like offices, bedrooms and other areas of your home that are remotely located from your router.

Plug and Play Installation

Setting up your PowerLine adapters could not be any easier – simply connect one adapter to your router and the other to your device of interest, hit the simple connect button on each adapter, and you’re good to go!

Scalable to your Needs

If you’re looking to connect more than just one wired device to your network with PowerLine, simply connect additional adapters. D-Link’s various PowerLine solutions are interchangable with one another, so even if you have older PowerLine models, compatibility won’t be an issue.


Package Contents

  • 2 PowerLine AV500 Network Adapters (DHP-308AV)
  • 2 Ethernet Cables

Minimum System Requirements

  • For Internet Access:
    • Cable or DSL Modem
    • Router
    • Subscription with an Internet Service Provider (ISP)
  • Power Supply:
    • 100-240VAC, 50/60Hz
  • For Network:
    • 2 or more PowerLine AV Devices


  • Create a PowerLine Network right out of the box
  • Uses your home's existing electrical wiring by plugging into existing power outlets2
  • Compact elegant design
  • Power Saving Mode
  • Push and Secure encryption button
  • Supports 128-bit AES encryption for network security
  • Plug & Play Installation
  • 24/7 Basic Installation Support3
  • 1-Year Limited Warranty4

For optimal wireless or PowerLine performance use with D-Link PowerLine Products:

  • PowerLine AV 200 Mini Adapter Starter Kit (DHP-209AV)
  • PowerLine AV500 Network Kit (DHP-309AV)
  • PowerLine AV 500 Wireless N Extender (DHP-W310AV)
  • PowerLine AV 500 Wireless Extender Kit (DHP-W311AV)
  • PowerLine AV2 600 Gigabit Starter Kit (DHP-601AV)
2 Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring conditions and configuration may affect the performance of this product. A minimum of two D-Link PowerLine AV Network Adapters are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug adapter directly into a power outlet.
41-Year Limited Warranty available only in the USA and Canada.

Technical Specifications:

D-Link DHP-309AV Specifications
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 1901
  • HomePlug AV
Ethernet Interface
  • 10/100
  • RJ-45 Connector
Security 128-bit AES Data encryption
Input Power 100V ~ 240V, 50/60 Hz
  • Power
  • PowerLine
  • Ethernet
Power Consumption <5W
Operating Temperature 30º to 104ºF (0º to 40ºC)
Operating Humidity 10% to 90% non-condensing
EMC Certifications
  • FCC
  • CE
Safety Certifications
  • UL
  • CE LVD
Dimensions 2.7" x 2" x 1.0" (70 x 52 x 26 mm)
Weight 0.23lbs (104g)
Warranty 1-Year Limited Warranty4
4 1-Year Limited warranty available only in the USA and Canada.

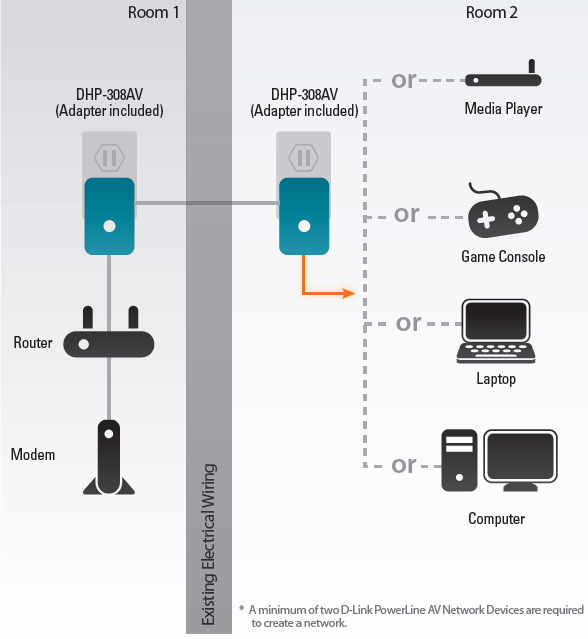

DHP-309AV Diagram


Download the D-Link DHP-309AV Datasheet (PDF).
