D-Link DIR-506L
SharePort™ Go Mobile Companion

D-Link DIR-506L

Sorry, this product is no longer available, please contact us for a replacement.

Overview:

Your mobile companion for on-the-go connectivity

Featuring a compact design and rechargeable battery, the highly portable D-Link SharePort Go (DIR-506L) is the ultimate mobile connectivity device. Whether you’re at home, on vacation, at the airport, or at a business meeting, the SharePort Go is the perfect way to stay connected and enjoy all of your media -- wherever life takes you, the SharePort Go is there.

Stream and share media to all of your devices

Stream and share your movies, music and photos to all of your devices, all at the same time, using D-Link’s free SharePort Mobile app – just plug in a USB drive and get instant, portable access to all of your favorite media.

Add wireless storage to your smartphone or tablet

The SharePort Go adds portable, wireless storage to your iPhone, iPad and Android devices, giving you more capacity for your favorite media. Just plug in a USB drive to instantly access and share your favorite movies, music, and photos – it’s that simple!

Transform any internet connection into a Wi-Fi hotspot

Create a Hotspot from any existing wired or wireless connection – perfect for weak hotel room signals!

Charge and go!

Expand your iPad, iPhone and Android Storage

Charging your SharePort Go is fast and easy. Simply plug it into your PC or laptop’s USB port; or, use the included USB cable to connect using a standard USB power adapter, like the one you use with your iPhone or Android devices. The SharePort Go will even charge your Smartphone so you can leave the messy wires and cables at home.

Stream your media and add mobile device storage with free SharePort™ Mobile App

Just plug in a USB drive to stream media and add storage to your mobile devices⁶
Charge and Go – Take it anywhere
Charge your Smartphone

⁶ D-Link cannot guarantee full compatibility or proper playback with all codecs.

Features:

Package Contents

SharePort™ Go Mobile Companion (DIR-506L)
1700mAh Li-ion battery
USB Cable
Quick Install Guide

Minimum Requirements⁷

Computer with:

Window 7®⁵,Windows Vista®⁵ or Windows®XP SP2⁵, Mac OS X (v10.7)
Internet Explorer® 7, Mozilla® Firefox®, Google Chrome or Safari 4
20MB Hard Disk Space
Network Interface Card

PowerInput:

Compatible with USB Power Adapter, 5V/1A minimum (Adapter Not Included)

For Internet Access:

Router/AP Mode: Requires an Ethernet wired cable with Internet connectivity
Wi-Fi Hotspot Mode: Requires a Wi-Fi signal with Internet connectivity

Mobile Apps:

SharePort Mobile App Requires iOS 4.3 or higher, and Android 2.0 or higher
QRS Mobile APP Requires iOS 4.3 or higher and Android 2.0 or higher

Features

SharePort® Web File Access Support (Router and Wi-Fi Hotspot Mode Only)
SharePort® Mobile App for iPhone®,iPad® and Android® mobile devices (Router and Wi-Fi Hotspot Mode Only)
Multiple Operation Modes, Router/ Access Point, Repeater and Wi-Fi HotSpot Modes to Create Different Usages
Charges most USB powered Smartphones
Powered by a computer USB port or with a USB AC adapter (adapter not included)
IEEE 802.11n and 802.11g Compliant¹
One 10/100 LAN/WANPort²
Mac Support
Supports Secure Wireless Encryption Using WPA or WPA2
Wi-Fi Protected Setup (WPS) Push Button
Active Firewall
QRS Mobile App for iPhone®, iPad® and Android®
1-Year Limited Warranty⁴

¹ Actual data throughputwill vary.Network conditions and environmentalfactors, including volume of network traffic and network overhead, lower actual data throughputrate.
² The attached devices must haveCAT5 or above Ethernet cable.
³ 24/7 Basic Installation Supportis available only in theUSAforthe first 30 daysfrom date of originalpurchase.
⁴ 1-Year LimitedWarranty available only in theUSAandCanada.
⁵ Computer must adhere to Microsoft’srecommended System Requirements.
⁶ D-Link cannot guarantee full compatibility or proper playback with all codecs.
⁷ Minimum Requirementisfor upgrading firmware.

Technical Specifications:

D-Link DIR-506L Specifications
Standards	IEEE 802.11n IEEE 802.11g IEEE 802.3 IEEE 802.3u IEEE 802.3ab
Physical Interface	1 10/100 Fast Ethernet Port 1 Wi-Fi Protected Setup™ Button
Antenna Type	Two Internal PIFA Antennas
Security	WPA™ & WPA2™ (Wi-Fi Protected Access) Wi-Fi Protected Setup (WPS) - PIN/PBC
Device Management	Internet Explorer v7 or Later; Mozilla Firefox; Google Chrome, Safari 4 or Later
Operation Modes	Router Mode AP Mode Wi-Fi Hotspot Mode
USB SharePort™	Maximum 500GB USB storage size USB drive format: FAT32 and NTFS
USB SharePort™ Mobile App Supported File Types	Movie File Types: .mp4 and .mov Music File Types: .mp3 and .wav Photo File Types: .jpg, .bmp, .gif and .png Other File Types: .doc, .docx, .pps, .ppt, .pptx, .xls, .xlsx, .pdf
Power Input	Compatible with USB Power Adapter, 5V/1A minimum Adapter Not Included
LEDs	Power/Charging USB Ethernet Wireless
Certifications	Wi-Fi FCC IC
Dimensions (Item)	4.05” x 0.88” x 3.14” inch (102.9mm x 22.3mm x 79.8mm)
Weight (Item)	0.28 lbs (125 grams)
Warranty	1-Year Limited*

*1-Year Warranty available only in the U.S.A and Canada.

Product Views:

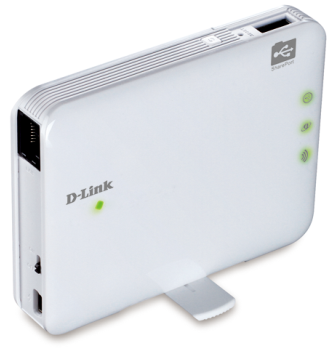

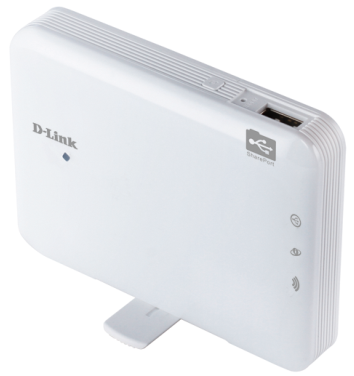

*D-Link DIR-506L Left Angle View*	*D-Link DIR-506L Right Angle View*

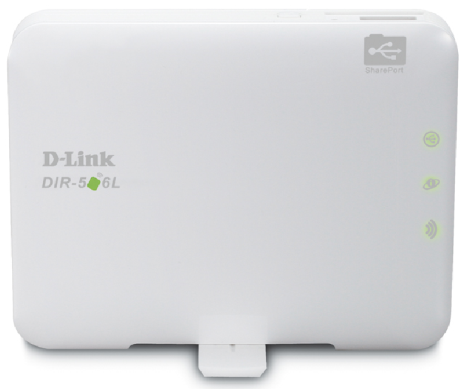

*D-Link DIR-506L Top View*

Documentation:

Download the D-Link DIR-506L Datasheet (PDF).

D-Link DIR-506L SharePort™ Go Mobile Companion
