D-Link DIR-890L/R
AC3200 Ultra Wi-Fi Router

D-Link DIR-890L/R

Sorry, this product is no longer available. Please contact us for more information.


mydlink Cloud ServiceWireless AC from D-Link

The AC3200 Ultra Wi-Fi Router delivers premium performance for today's most demanding tasks: HD streaming, gaming, and multiple device usage. It comes packed with speeds of up to 3.2Gbps1, a dualcore processor, three bands (one 2.4GHz and two 5GHz), AC SmartBeam technology, Intelligent Quality of Service (QoS) with traffic prioritization, six high-performance external antennas for maximum range, a new user interface, Smart Connect and with a really easy setup. The perfect combination of performance and ease of use.

Smarter Wireless AC Features

The AC3200 Ultra Wi-Fi Router creates an incredibly fast and far-reaching home network for all of your connected devices. The DIR-890L with Smart Connect provides Band Steering Technology to prevent your network from being bottlenecked by devices. In other words, Smart Connect Technology will efficiently select the fastest Wi-Fi for every device. SmartConnect will also simplify your Single Home Network, with one SSID (wireless network identifier) and a security key for all of your devices. All that great technology to let you enjoy more of the stuff you love doing the most.

Controlling Your Network Just Got Easier

Control your network like never before. Using the new user interface, you can monitor internet activity, block unwanted devices, and prioritize (drag and drop) your devices with our intelligent QoS engine, all from our redesigned UI. It's really easy to use; you can even check on your connected devices' statistics. Bottom line, fewer clicks to get where you need to go.

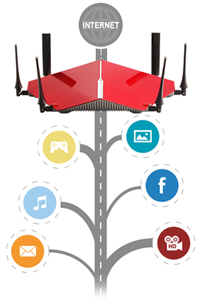

Ultra-Fast Speed for HD Streaming & Gaming

Smartphones, laptops, tablets, phones, Smart TVs, game consoles and more – all being connected at the same time. That’s why we created the new AC3200 Ultra Wi-Fi Router. With Tri-Band Technology and speeds up to 3.2Gbps, it delivers the necessary ultra-performance to power even the most demanding connected homes, making it the best wireless home router for gaming.

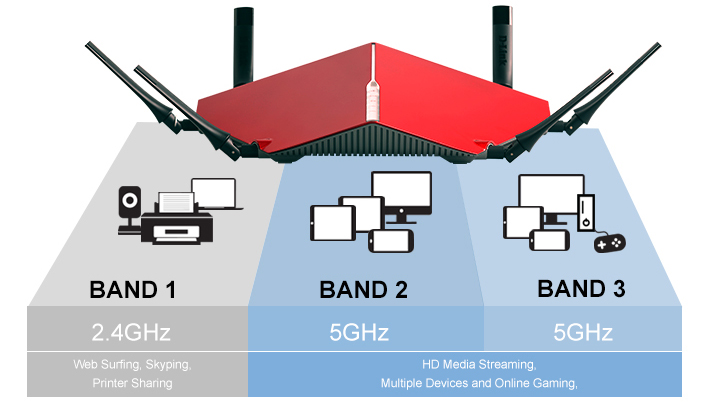

Tri Band Wi-Fi

The AC3200 ULTRA Wi-Fi Router is like three wireless routers in one. It has a 2.4GHz wireless band offering speeds up to 600Mbps and two separate 5GHz wireless bands delivering speeds up to 1,300Mbps that all operate at the same time. That means more lag free online gaming, 4k media streaming,and Facetime on more devices throughout your home.

Tri Band Wi-Fi

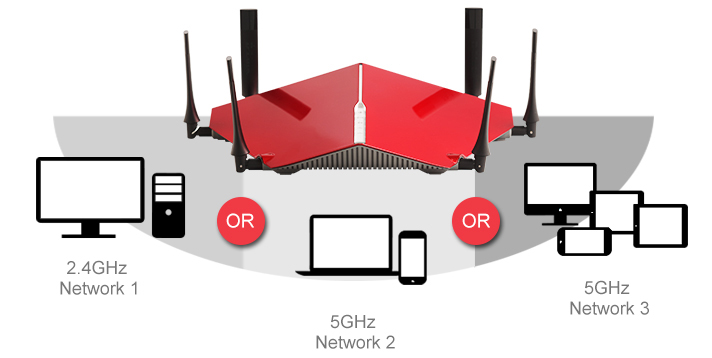

Smart Connect

Not all Wi-Fi bands are the same, but you don’t need to worry about that. With Smart Connect Technology, the ULTRA Wi-Fi Router chooses from the three Wi-Fi bands and automatically connects each device on your network to the best, clearest band available for the best connection every time.

Smart Connect

Smart Beam Forming

Improves coverage by directing bandwidth to your devices as you move around your home. You can stream HD video, surf the web, skype your friends and play online games from wherever you are so you’ll always get the best experience.

Smart Beam Forming

Controlling Your Network Just Got Easier

Smarter Bandwidth

Controlling your network by enabling parental controls, blocking unwanted devices, monitoring internet activity and creating Wi-Fi guest networks is easier than ever with our new interface.

Smarter Bandwidth

Intelligent Traffic Prioritizations selects the fastest Wi-Fi for every device and prevents older devices from affecting optimal performance.

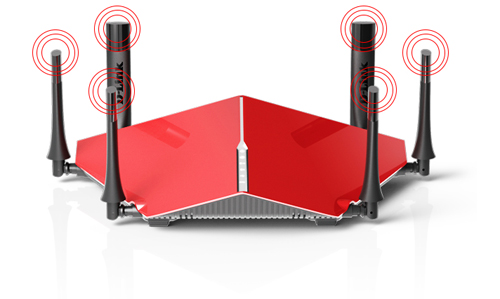

More Antennas for More Coverage

Six high performance external antennas keep all of your mobile devices connected with stronger Wi-Fi coverage and superior performance.

More Antennas for More Coverage
More Processing Power

More Processing Power

A 1 GHZ Dual Core Processor gives you all the processing power you need to support more devices and apps in your home. Experience the ultimate in lag free gaming and 4K media streaming.

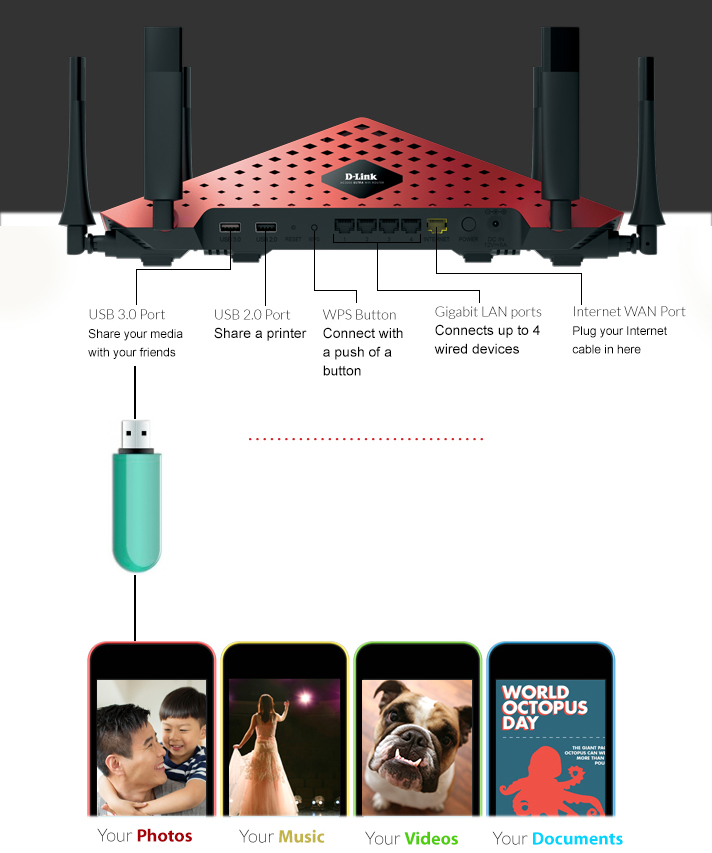

Smart Connections

Lots of connection options at your fingertips. Enjoy more of the stuff you love.

Smart Connections

Ultimate Gaming Experience

Give your new NVIDIA SHIELD - The World's First 4K Android TV Console - the speed and power it craves. The AC3200 is an NVIDIA GameStream-Ready product. Your ultimate gaming experience awaits.

Ultimate Gaming Experience



  • Advanced Wireless AC beamforming dramatically enhances wireless signal strength and throughput
  • 802.11 a/g/n/ac wireless LAN for a complete range of wireless compatibility
  • Gigabit WAN and LAN ports for high-speed wired connections
  • Two USB ports (one 3.0 and one 2.0) to connect storage drives and printers for sharing

mydlink Cloud

  • Remotely view and manage your network over the Internet
  • mydlink Lite mobile app helps you access, manage and view your network remotely


  • Band steering dynamically balances wireless clients among the three wireless bands


  • Tracks the type of network traffic (HD media streaming, web surfing, online gaming) and decide which applications deserves higher priority


  • WPA & WPA2 wireless encryption protects the network from intruders
  • Wi-Fi Protected Setup (WPS) securely adds devices to your network at the push of a button

Technical Specifications:

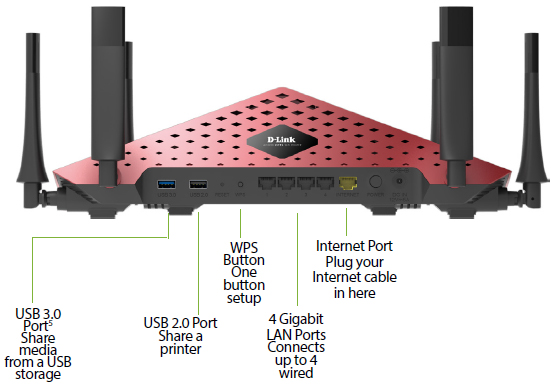

DIR-890L/R Back View

D-Link DIR-890L/R Specifications
Device Interfaces
  • 802.11 a/g/n/ac wireless LAN
  • Four 10/100/1000 Gigabit LAN Ports
  • 10/100/1000 Gigabit WAN Port
  • Two USB ports (one USB 3.0, one USB 2.0)
  • IEEE 802.11ac
Minimum Requirements
  • Windows 8.1, Windows 8, Windows 7 , or Mac OS X (v10.7)4
  • Ethernet Network Interface
  • Internet Explorer 11, Mozilla Firefox v28, Google Chrome v33, or Safari v7
  • For optimal performance, pair the DIR-890L with an AC adapter
  • Cable, DSL or Fiber Optics
Advanced Features
  • SmartConnect
  • Guest Zone
  • mydlink SharePort web access
  • Multi-language web setup wizard
  • Green Ethernet
  • DLNA media server support
  • Advanced AC SmartBeam
  • Dual active firewall
    • Network Address Translation (NAT)
    • Stateful Packet Inspection (SPI)
  • VPN Passthrough (PPTP/L2TP/IPsec)
  • Advanced QoS
  • Quick VPN - L2TP over IPsec
mydlink Lite Mobile App Features
  • Remote Management
  • Block/unblock client network access
  • View current upload/download bandwidth
  • Manage wireless network details
  • View currently connected clients
  • Accessible through a web browser or iOS or Android mobile app
Mobile App Support
  • mydlink lite
  • QRS Mobile v1.5
  • mydlink SharePort
Wireless Security
  • WPA & WPA2 (Wi-Fi Protected Access)
  • Wi-Fi Protected Setup (WPS) PIN/PBC
Advanced Firewall Features
  • SPI (Stateful Packet Inspection)
  • NAT (Network Address Translation)
Dimensions 15.23 x 9.73 x 4.7 inches
  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V DC, 5A
  • Operating: 32 to 104 °F
  • Storage: -4 to 149 °F
  • Operating: 0% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
  • FCC Class B
  • Wi-Fi Certified
  • DLNA2
  • IPv6 Ready
Package Contents
  • Wireless AC3200 Ultra Wi-Fi Router
  • Quick Installation Guide and warranty documents3
  • Power Adapter
  • Ethernet Cable
  • Wi-Fi Configuration Card
Warranty 1-Year Limited Warranty
1 Maximum wireless signal rate derived from IEEE standard 802.11ac specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2 Compatibility with more devices will be available in the future.
3 Latest software and documentation are available at
4 Software included is not Mac-compatible.
5 Maximum transfer rate based on USB 3.0 specifications. Actual data throughput will vary. To meet USB3.0 transfer speeds, USB 3.0 hubs, cables and devices are required.

Product Views:

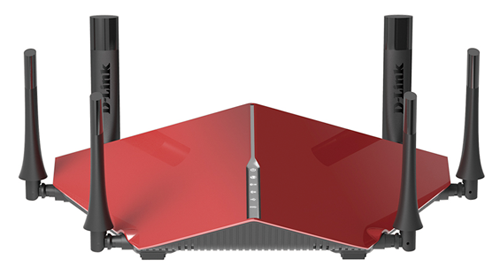

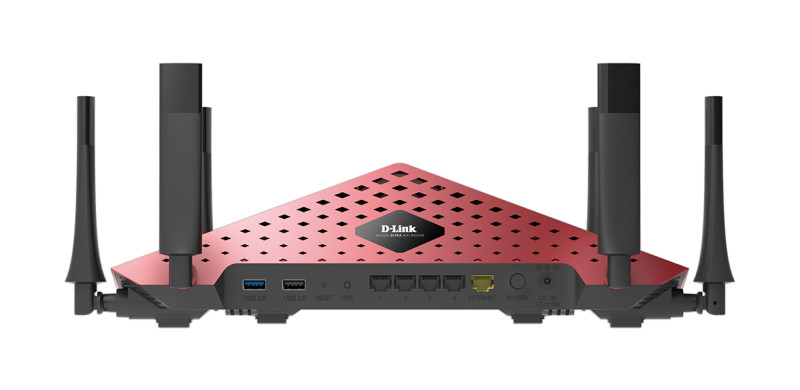

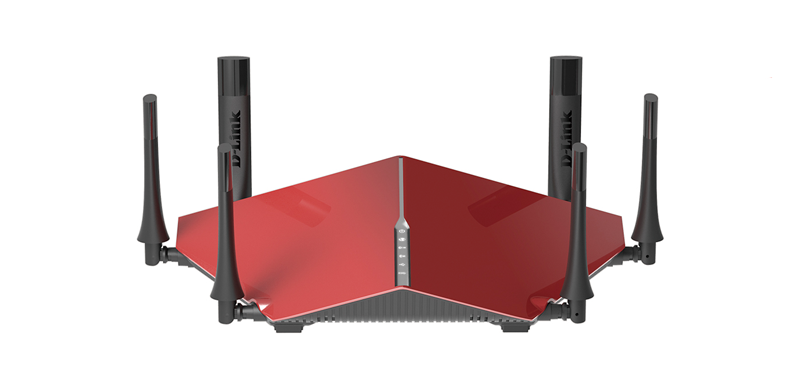

DIR-890L/R Front View DIR-890L/R Back View
DIR-890L/R Front View DIR-890L/R Back View

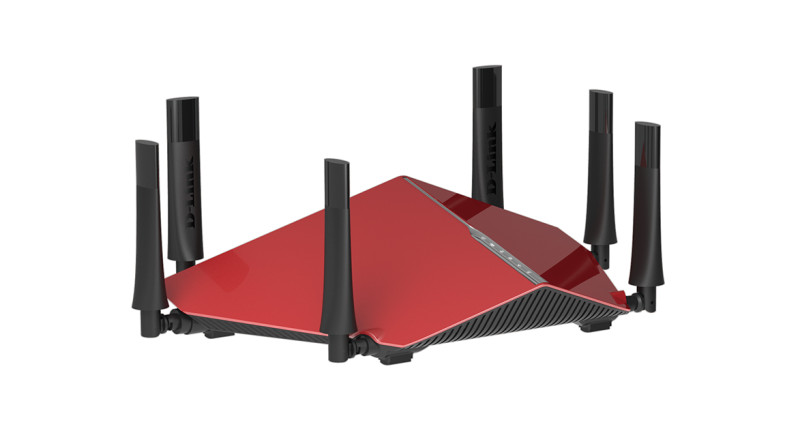

DIR-890L/R Left Angle View DIR-890L/R Box
DIR-890L/R Left Angle View DIR-890L/R Box


Download the D-Link DIR-890L/R Datasheet (PDF).
