mydlink Camera Recorder
Sorry, this product is no longer available, replaced by the NCB-C6UF-30.
The DNR-202L mydlink Camera Video Recorder can record video from up to four D-Link Wi-Fi Cameras to any connected USB hard drives (up to two at 4TB each), eliminating the need for a dedicated PC. Unlike traditional CCTV recording solutions, the mydlink Camera Video Recorder provides an economic solution by utilizing existing IP infrastructure and makes storage much more flexible with your own USB drives. Simultaneous live view or playback while recording as well as complete video management and easy custom configuration, make the DNR-202L a convenient and reliable network video recorder that is perfect for your home or small office use.
All-In-One Security Solution
Multi-camera & full screen live viewing and ultra-smooth pan, tilt and zoom functionalities3 let you monitor your connected cameras with precision and confidence. The DNR-202L features a clear and simple interface for straightforward configuration including compression, resolution and frame rate for all connected cameras. Once the cameras have been set up, recordings can be created continuously with automatic overwrite function, or according to a user-defined schedule. The mydlink Camera Video Recorder also provides event recording based on specific triggers such as when motion or sound is detected.
Driven by the increasing popularity of 802.11ac Wave 2 access points and the emerging trend of 2.5 Gigabit LAN connections, 2.5 Gigabit technology will ultimately replace Gigabit as the standard for Ethernet connectivity. With backwards compatibility for older standards, the DMS-1100 Series can be flawlessly integrated into existing Gigabit Ethernet network infrastructures while simultaneously making networks future-proof for the next generation of 2.5 Gigabit connectivity.
Convenient Access Anytime, Anywhere with mydlink
With the mydlink View - NVR app for iOS and Android devices4 , you can quickly and easily view your camera feed or search recorded footage from anywhere with a Wi-Fi, 3G or 4G connection. Set up is easy - simply run the setup wizard, assign your DNR-202L to your mydlink account (or set up an account if you are a first time user), and you are ready to go. The mydlink Camera Video Recorder will even automatically discover the D-Link Wi-Fi Cameras in your network.
- Cameras Supported
- 4 Channels
- Fast Ethernet (10/100)
- 0 Hard Drive Bays
- 2 USB Ports
- USB 2.0
|CAMERA VIDEO RECORDER|
|Video Format||H.264 / MPEG-4 / MJPEG for live streaming JPEG for still images|
|Audio Support||G.711 / G.726|
|Reset Button||Reset to factory default|
|Auto Scan Key||IP Camera Finder (press for 3 seconds)|
|Eternal Device Interfaces||10/100 BASE-TX Fast Ethernet Port for network connection 2 x USB 2.0 ports for external HDD storage|
|Supported Cameras||Supports up to 4 mydlink-enabled network cameras|
|Playback / Recording||Supports 4 channel simultaneous playback Supports simultaneous live viewing or playback during recording Continuous recording with automatic overwrite function|
|Live View/Playback Interface||HTTP Web Browser mydlink.com portal mydlink View-NVR app|
|Live View Display Modes||1 and 4 Channel display|
|Recording Modes||Schedule, Manual, Event (Motion), Continuous|
|Recording Performance||H.264 / MPEG4 720p @ 30 fps : 32 Mbps|
|Video Setting||Resolution/Quality/Frame Rate/Compression Format/Audio On and Off|
|Playback Control||Play, Stop, Pause, Forward, Backward, Next, Previous|
|Video Export Formats||Video: AVI|

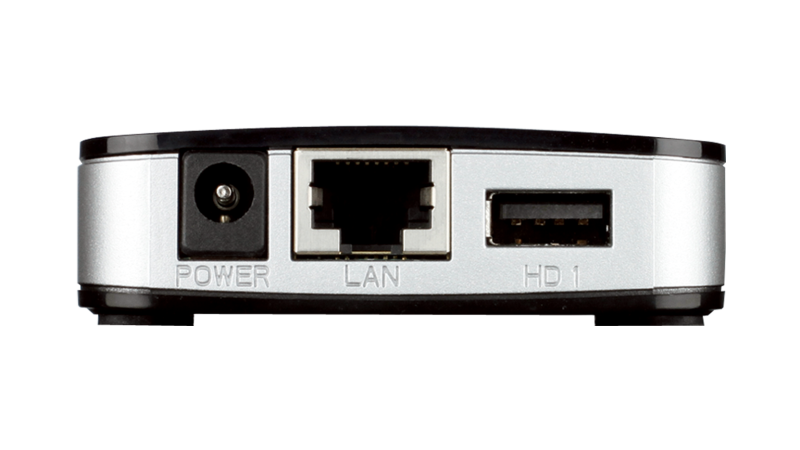

|Physical Interface||RJ45 10/100 LAN Ethernet (auto MDI/MDIX)|
|Network Protocols||IPv4, ARP, TCP, UDP, ICMP DHP Client DNS Client HTTPS Server HTTPS SMTP RTP RTCP RTSP NTP UPnP|
|User Management||Administrator password authentication|
|Automatic Logoff||Idle user timeout on configuration pages|
|Supported mydlink Cameras||DCS-930L, DCS-931L, DCS-932L, DCS-933L, DCS-936L, DCS-942L, DCS-5010L, DCS-5020L, DCS-2132L Rev A1 and B1, DCS-5222L Rev A1 and B1, DCS-2310L, DCS-2330L, DCS-2332L, DCS-6010L, DCS-7010L, DCS-2530L, DCS-5030L Use the latest DNR-202L firmware for proper support of mydlink cameras listed.|
|System Requirements||Microsoft Windows 8, 7 Mac OS 10.7 or higher|
|Browser Requirements||Internet Explorer 8 or higher Safari 7 or higher|
|Mobile Support||Android iOS|
|Remote Management||Remote live view and playback via web browser Configuration interface accessible via web browser|
|System Log||Status of active users Login history|
|Certifications||CE FCC CE LVD C-Tick|
|Weight||0.2 lbs. (90g)|
|External Power Adapter||Input: 5V DC, 3 A Consumption: 8.5 Watts +/- 5% (include 2 x 2.5 HDD)|
|Temperature||Operating: 32o to 104o F (0o to 40o C) Storage: -4o to 158o F (-20o to 70o C)|
|Humidity||Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing|
|Dimensions||4.62 x 2.76 x 0.80 inches|
Download the D-Link DNR-202L Series Datasheet (PDF).
