D-Link DWA-525
Wireless N 150 PCI Adapter

D-Link DWA-525

Sorry, this product is no longer available, please contact us for a replacement.


Upgrade Your Wireless Adapter

D-Link® introduces the Wireless N 150 Desktop PCI Adapter (DWA-525), which delivers high performance wireless connectivity with better wireless reception over standard Wireless G adapters1. Upgrading your notebook or PC with the D-Link Wireless N 150 Desktop PCI adapter will provide an excellent solution for experiencing better wireless performance and faster connection to a high-speed wireless network.

Enhanced Wireless Range

Using Wireless N technology, the DWA-525 provides optimal wireless performance and faster file transfers, which enable you to receive better reception across your home. Not only does the D-Link Wireless N 150 technology extend your wireless range, it is also compatible with previous-generation Wireless G devices.

Easy to Set Up

The DWA-525 makes it easy to set up and connect to your home or office wireless network without professional installation. The DWA-525 includes a Quick Adapter Setup Installation Wizard4 CD-ROM, which walks you through the easy step-by-step installation process to configure your new DWA-525 Desktop PCI Adapter in minutes. Also included is the Wireless Connection Manager that simply adds and saves the settings for the networks you frequent most.

Easy To Use

The DWA-525 easily connects your desktop computer with an available PCI port to your wireless network for Internet access and file sharing. With Wireless N performance, the D-Link Wireless N 150 Desktop PCI Adapter is the best choice for easily adding or upgrading wireless connectivity to your desktop computer.

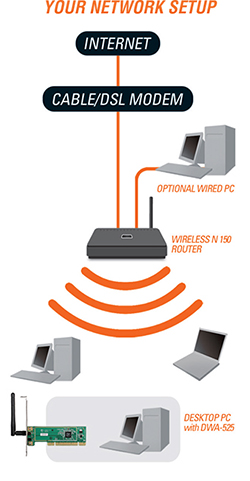

DWA-525 Diagram
1 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless N 150 devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link Wireless N devices.
4 Latest software and documentation are available at

Technical Specifications:

D-Link DWA-525 Specifications
  • IEEE 802.11n
  • IEEE 802.11g
Interface PCI 2.0
Frequency Range 2.4GHz to 2.4835GHz
  • Wi-Fi Protected Access (WPA, WPA2)
  • Wi-Fi Protected Setup™ (WPS)
  • Push Button
Device Management Internet Explorer v7 or later, Mozilla Firefox v3.0 or later, or other Java-enabled Browsers
LEDs Link/Activity
  • FCC Class B
  • IC
  • Wi-Fi
Operating Temperature 32ºF to 104ºF (0°C to 40°C)
Operating Humidity 10% ~ 90% Non-condensing
  • Item (WxDxH): 4.7” x 4.8” x 0.9” (120mm x 122mm x 22mm)
  • Packaging (WxDxH): 8.2” x 5.4” x 1.4” (208mm x 137mm x 36mm)
  • Item: 0.1 lbs (0.05kg)
  • Packaging: 0.5 lbs (0.23kg)
Warranty 1 Year Limited2
2 1-Year Limited Warranty available only in the U.S.A and Canada.

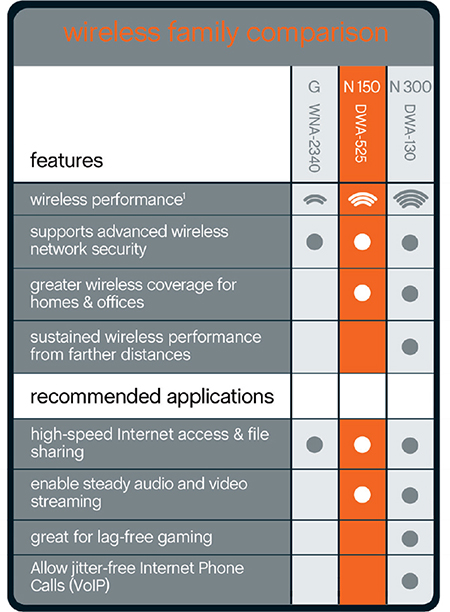

Comparison Chart:

Comparison Chart

Product Views:

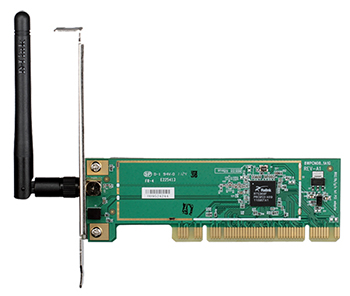

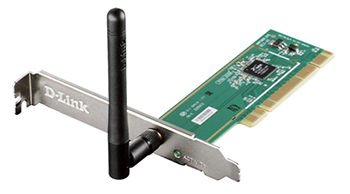

D-Link DWA-525 Angle View

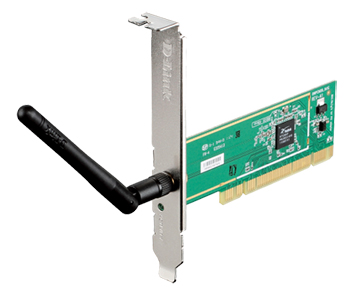

D-Link DWA-525 Side View
D-Link DWA-525 Angle View D-Link DWA-525 Side View


Download the D-Link DWA-525 Datasheet (PDF).
