D-Link DWL-6600AP
Unified N Concurrent Dual-band PoE Access Point

D-Link DWL-6600AP

Sorry, this product is no longer available, please contact us for a replacement.


The DWL-6600AP Unified N Dual-band PoE Access Point is a best-in-class indoor access point designed specifically for business-class environments. With high data transmission speeds and access point load balancing, the DWL-6600AP offers high-quality and reliable wireless service. Versatile and powerful, the DWL-6600AP can be flexibly deployed as a standalone wireless access point or as a managed access point controlled by a D-Link® Unified Wireless Switch or Wireless Controller. Businesses can start with standalone mode deployment, then migrate to a centrally managed system anytime later.

Enhanced Performance
The DWL-6600AP delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in either the 2.4 GHz or 5 GHz mode. Support for Wi-Fi Multimedia™ (WMM) Quality of Service features makes the DWL-6600AP an ideal access point for audio, video, and voice application. In addition, the load balancing feature ensures maximum performance and best service quality in the wireless environment1.

Self-Configuring Cluster
For small businesses that need to deploy multiple access points (APs) but lack the resources to tackle the complicated task of network management, the DWL-6600AP’s self-configuring cluster feature offers the ideal solution. When several DWL-6600APs are deployed on the network, they can be organized to form a self-configuring cluster. The administrator can configure one access point and apply the same arrangement to all remaining APs. Up to 16 APs may be used to form a cluster.

Unified Management
The DWL-6600AP can operate in conjunction with a D-Link Wireless Switch and Wireless Controller. In this mode, multiple DWL-6600APs can connect directly or indirectly to one of these switches/ controllers to provide unparalleled security and wireless mobility for wireless clients. Each DWL-6600AP will be continually tuned by these switches to provide the optimal RF channels and transmission power for all mobile clients, giving them the best wireless signals in both 2.4GHz and 5.0GHz bands and uninterrupted wireless connectivity.

The DWL-6600AP supports the latest standards in wireless security, including WEP, WPA, WPA2, and 802.1X. In addition, the DWL-6600AP supports up to 16 virtual access points (VAP) per radio, for a total of 32 VAPs, allowing the administrator to assign different access privileges to different groups of users. When Station Isolation is enabled, the AP blocks communication between wireless clients on the same radio and VAP. When used with D-Link’s line of Unified Wireless Switches, security is strengthened. Administrators will be immediately notified of any security threats arise and when rogue APs in the network are detected.

Automatic RF Management
When a number of access points are deployed close to each other, interference may result if proper RF management is not implemented. When a DWL-6600AP senses any neighbor AP at startup, it will automatically select a non-interfering channel, the DWL-6600AP will automatically lower its transmission power to minimize interference. When that managed AP is no longer present, the DWL-6600AP will increase it’s transmit power to expand coverage.

Quality of Service
The DWL-6600AP is WMM-certified, so in the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic. Furthermore, when a number of DWL-6600APs are in close proximity with each other, an access point can refuse new association request once its resources are fully utilized. Instead, the association request will be picked up by a neighboring AP. This feature ensures that no single AP is over burdened while other APs nearby sit idle.

Convenient Installation
With an embedded antenna and simple styled exterior, the DWL-6600AP can be installed on a wall or ceiling and blends in with most interior decorations in an office. Enclosed in a plenum-rated chassis, the DWL-6600AP adheres to strict fire codes for placement in air passageways. For easy installation, the DWL-6600AP has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device in areas where power outlets are not readily available.


Ideal for Business

  • Blazing wireless performance of up to 300 Mbps network throughput
  • Configuration Replicating Clusters reduce configuration complexity
  • Up to 32 virtual access points may be created from a single device
  • Automatic load-balancing among neighboring access points
  • Flexible QoS with WMM

Trusted Security

  • WPA/WPA2 Personal
  • WPA/WPA2 Enterprise
  • WEP Encryption
  • 802.1X User authentication
  • MAC address filtering
  • Rogue AP detection

Convenient Installation

  • Can be easily mounted on a wall or ceiling
  • 802.3af Power Over Ethernet enables installation in installation in hard-to-reach locations
  • Mounting brackets are included

Technical Specifications:

D-Link DWL-6600AP Specifications
Wi-Fi Interface 802.11a/b/g/n 2.4/5.0 GHz
LAN Interface 10/100/1000 Gigabit Ethernet
Console RJ-45
Antenna 2x2 MIMO embedded antenna with 4 external antenna connectors
Power Method IEEE 802.3af Power Over Ethernet or external power adapter
Wireless Frequency
  • 802.11n: 2.4 to 2.497 GHz and 4.9 to 5.85 GHz
  • 802.11b/g: 2.4 to 2.4835 GHz
  • 802.11a: 5.15 to 5.35 GHz and 5.725 to 5.825 GHz
Data Transfer Rate
  • 802.11n: 6.5 Mbps-130 Mbps (20 MHz), 6.5 MHz-300 Mbps (40 Mbps)
  • 802.11a/g: 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
  • 802.11b: 11, 5.5, 2 and 1 Mbps
Operation Channel (2.4 GHz)
  • 5.0 GHz: 12 Non-Overlapping Channels for US and Canada
  • 2.4 GHz: 11 channels for United States
System Management
  • HTTP/HTTPS Web-based User Interface
  • SNMP, SSH, Telnet Command Line
  • 16 SSID per frequency band, 32 SSID per AP
  • Station Isolation
Wireless Security
  • WEP
  • Dynamic WEP
  • WPA Personal/Enterprise
  • WPA2 Personal/Enterprise
Detection & Prevention Rogue and Valid AP Classification
  • MAC Address Filtering
  • 802.1x
Physical & Environmental
Power Adapter 12 V 1 A
Power over Ethernet 48 VDC +/- 10%
Stand-Alone Mode
  • WEP/WPA/WPA2 Security
  • Rogue AP Detection
  • Station Isolation
  • MAC Address Filtering
  • AP Load Balancing Setup
  • WDS
  • AP Clustering
  • QoS/WMM
  • Local Storage Configuration
Managed Mode
(Managed by D-Link Wireless Switch/Wireless Controller)
  • Centralized Management
  • Centralized Firmware Dispatch
  • Visualized AP Management Tool
  • Auto-Power Adjustment
  • Dynamic Auto-Channel Selection
  • L2 Fast Roaming
  • L3 Fast Roaming
  • Captive Portal
  • WEP/WPA/WPA2 Security
  • Rogue AP Detection
  • Rogue AP Mitigation
  • WIDS
  • Station Isolation
  • MAC Address Filtering
  • AP Load Balancing Setup
  • WDS
  • QoS/WMM
Dimensions 6.14"x 3.05" (156 x 77.5 mm)
Weight 1.1 lbs (0.5kg)
Operating Temperature 32°F to 104°F (0° to 40°C)
Operating Humidity 10% to 90% non-condensing
  • FCC Class B
  • CE Class B
  • C-tick,
  • IC
  • VCCI
  • NCC
  • Wi-Fi
Safety cUL, LVD (EN60950-1), UL2043
MTBF 497,476 hours
Warranty Limited Lifetime
1 300 Mbps is the maximum wireless signal rate as specified by the IEEE 802.11n standard. Actual data throughput will vary. The network and other factors, including volume of network traffic, building materials, and nearby radio interference may lower actual data throughput.
2 Up to 16 virtual Access Points each on the 5GHz and 2.4 GHz radios
3 When used with a D-Link Unified Wireless Switch or Wireless controller

Product Views:

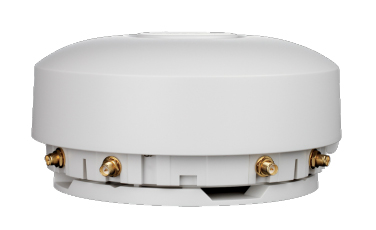

D-Link DWL-6600AP Back View

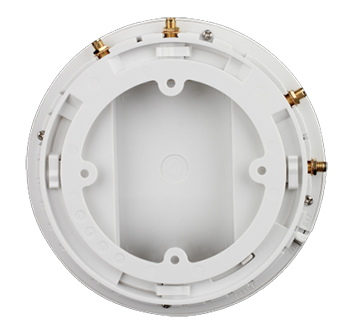

D-Link DWL-6600AP Bottom View
D-Link DWL-6600AP Back View D-Link DWL-6600AP Bottom View
D-Link DWL-6600AP Side View
D-Link DWL-6600AP Front View

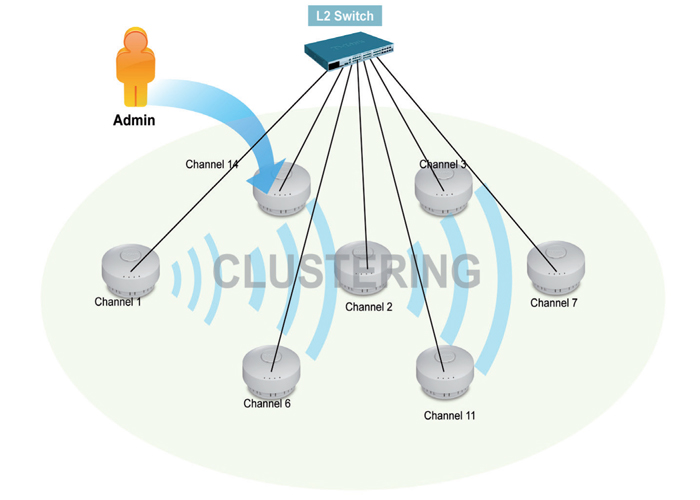

Deployment Scenario: AP Clustering

Deployment Scenario: AP Clustering

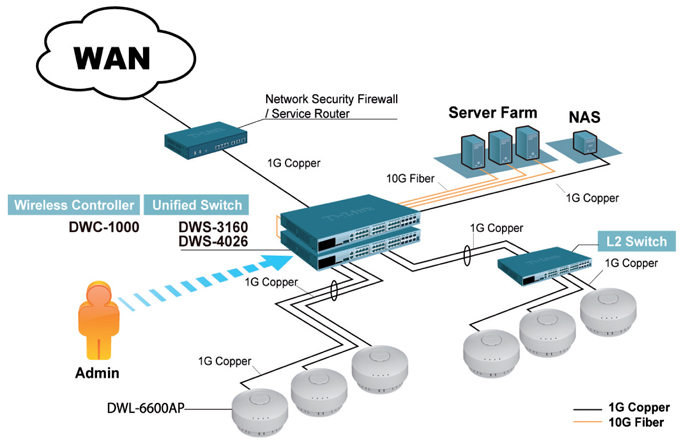

Deployment Scenario: Unified Management

Deployment Scenario: Unified Management


Download the D-Link DWL-6600AP Datasheet (PDF).
