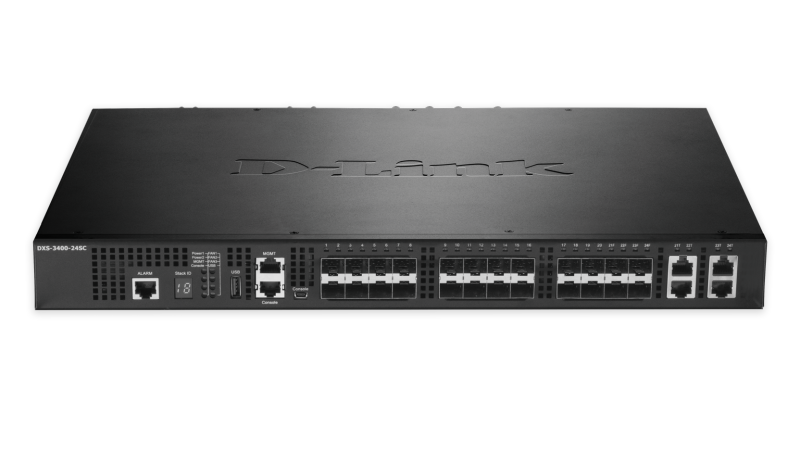

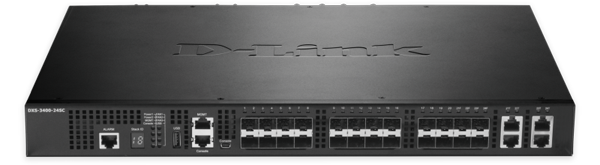

D-Link DXS-3400-24SC
24-Port Lite Layer 3 Stackable 10GbE Managed Switch

D-Link DXS-3400-24SC

D-Link Products

D-Link Managed Switches

DXS-3400 Series 24-Port L2+ Fully Managed 10GbE SFP+ Switch

#DXS-3400-24SC
List Price: ~~$6,992.99~~
Our Price: $6,643.34

D-Link Managed Switches License

DXS-3400-24SC SI to EI License Upgrade

#DXS-3400-24SC-SE-LIC
List Price: ~~$417.99~~
Our Price: $397.09

Click here to jump to more pricing!

Overview:

D-Link’s DXS-3400 Series Lite Layer 3 Stackable 10 GbE Managed Switches are compact, high-performance switches that feature wire speed 10-Gigabit Ethernet switching, routing, and ultra-low latency. The 1U height and high port density make the DXS-3400 Series suitable for enterprise and campus environments where space is at a premium. 10GbE Copper and Fiber versions are available. The DXS-3400-24TC includes twenty (20) 10GBASE-T (RJ45) ports and four (4) 10GbE “Combo” ports (RJ45/SFP+). The DXS-3400-24SC includes twenty (20) 10GbE optical (SFP+) ports and four (4) 10GbE “Combo” ports (RJ45/SFP+).

High Availability and Flexibility

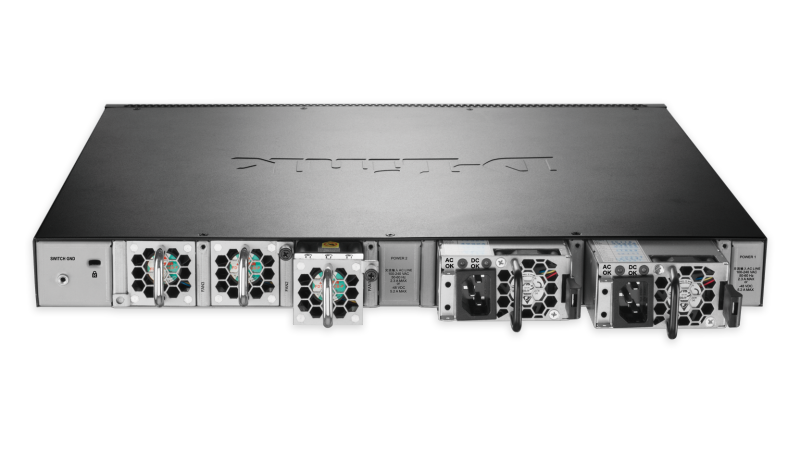

The DXS-3400 Series switches feature modular fans and power supplies for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Physical and virtual switch stacking allows the switches to be managed from a single IP address and provides redundancy for connected devices. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the application. The DXS-3400 Series switches support 3 modes – IP Mode, LAN Mode and L2 VPN Mode – which modify the size of the Layer 2 and 3 tables for optimum efficiency.

Feature Rich Software

The DXS-3400 Series switches include feature rich software which satisfies the needs of Small/Medium Business (SMB), Small/Medium Enterprise (SME), and Campus users. This software supports a wide range of Layer 2 and 3 functions such as VLANs, inter-VLAN routing, multicasting, Quality of Service (QoS), Virtual Router Redundancy Protocol (VRRP), Routing Information Protocol (RIP)v1/2, Next Generation RIP (RIPng), Policy-Based Routing (PBR), and security features. The DXS-3400 Series switches also include an easy-to-use web interface and an industry standard CLI for improved management.

Lossless Ethernet

Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The DXS-3400 Series switches support several core components of Data Center Bridging (DCB) such as IEEE 802.1Qbb, IEEE 802.1Qaz, and IEEE 802.1Qau. IEEE 802.1Qbb (Priority-based Flow Control) provides flow control on specific priority to ensure there is no data loss during network congestion. IEEE 802.1Qaz (Enhanced Transmission Selection) manages the allocation of bandwidth amongst different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion management for data flows within network domains to avoid frame loss.

Energy Efficient

The DXS-3400 Series switches feature front-to-back airflow which optimizes air circulation inside the rack, supports hot and cold aisles in data centers, and increases energy efficiency. The switches also feature in-built smart fans. Internal heat sensors monitor and detect temperature changes, and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run more slowly, reducing the switch’s power consumption and noise.

Lifetime Warranty and NBD Replacement

D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DXS-3400 Series of Lite Layer 3 Stackable 10GbE Managed Switches to further its commitment to product quality and long-term customer confidence.

Features:

High Availability and Flexibility

Two AC/DC hot-swappable power modules for 1+1 redundancy and load sharing
Three hot-swappable fan trays provide N+1 cooling redundancy
Physical Stacking via four 10G ports, can stack up to 4 devices
Ethernet Ring Protection Switching (ERPS)
Switch Resource Management (SRM) for flexible management of system resources

Lossless Ethernet via Data Center Bridging (DCB)

IEEE 802.1Qbb Priority-based Flow Control (PFC)
IEEE 802.1Qaz Enhanced Transmission Selection (ETS)
IEEE 802.1Qau Congestion Notification (CN)

Traffic Monitoring & Bandwidth Control

Port Mirroring/Bandwidth Control
Broadcast/Multicast/Unicast storm control
Single Rate Three Color Marker (srTCM)
Two Rate Three Color Marker (trTCM)

Easy Management

RJ45/mini-USB console port
Management and alarm ports
USB Port for firmware and configuration files
Easy-to-use web GUI
Industry standard CLI

Technical Specifications:

D-Link DXS-3400 Series Specifications
	DXS-3400-24TC	DXS-3400-24SC
General
Interfaces	20 x 10GBASE-T (RJ45) ports 4 x 10GbE Combo Ports (RJ45/SFP+)	20 x 10GbE Optical (SFP+) ports 4 x 10GbE Combo Ports (RJ45/SFP+)
Console Port	RJ45 and Mini USB console ports for out-of-band CLI management
Management Port	10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management
Alarm Port	RJ45	RJ45
USB Port	USB 2.0 Type A	USB 2.0 Type A
Performance
Switching Capacity	480 Gbps	480 Gbps
Max. Forwarding Rate	357.12 Mpps	357.12 Mpps
Packet Buffer Memory	4 MBytes	4 MBytes
MAC Address Table	Up to 48K entries	Up to 48K entries
Physical & Environmental
MTBF	TBD	TBD
Heat Dissipation	557.94 BTU/hr	388.39 BTU/hr
Power Input	100 to 240 VAC, 50/60 Hz, 2A	100 to 240 VAC, 50/60 Hz, 2A
Max Power Consumption	159.8 W	118.6 W
Standy Power Consumption	85.1 W	64.8 W
Operating Temperature	23°F to 122°F (-5°C to 50°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Operating Humidity	0% to 95% non-condensing
Storage Humidity	0% to 95% non-condensing
Dimensions (W x D x H)	17.4 x 15.0 x 1.73 inches (441 x 380 x 44 mm)
Weight	16.8 lbs / 7.6 kg (2 PSUs, 3 fan modules) 14.7 lbs / 6.65 kg (1 PSU, 3 fan modules) 11.6 lbs / 5.25 kg (no PSU or fan modules)	16.4 / 7.45 kg (2 PSUs, 3 fan modules) 14.3 / 6.5 kg (1 PSU, 3 fan modules) 11.2 lbs / 5.1 kg (no PSU or fan modules)
Certifications
Safety	cUL, CB, CE, CCC, BSMI
EMI/EMC	CE, FCC, C-Tick, VCCI, BSMI, CCC
Warranty Information
Warranty	Limited Lifetime

Software Features

Stackability

Physical stacking
- Up to 80G stacking bandwidth
- Up to 4 switches in a stack
- Ring/chain topology support
Virtual Stacking/clustering of up to 32 units
- Supports D-Link single IP Management

L2 Features

MAC Address Table
- Up to 48K entries
Flow Control
- 802.3x Flow Control when using Full Duplex
- Back Pressure when using Half Duplex
- HOL Blocking Prevention
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- Root Guard
- Loop Guard
Jumbo Frame
- Up to 12 KBytes
802.1AX Link Aggregation
- Max. 32 groups per device, 8 ports per group
ERPS (Ethernet Ring Protection Switching)
Port Mirroring
- Supports One-to-One, Many-to-One
- Supports Mirroring for Tx/Rx/Both
- Supports 4 mirroring groups
Flow Mirroring
- Supports Mirroring for Rx
VLAN Mirroring
L2 Protocol Tunneling
Loopback Detection (LBD)
iSCSI Awareness

L2 Multicast Features

MLD Snooping
- MLD v1/v2 Snooping
- Supports 256 groups
- Host-based MLD Snooping Fast Leave
- Supports 64 static MLD groups
- MLD Snooping Querier
- Per VLAN MLD Snooping
- MLD Proxy Reporting
IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Supports 512 IGMP groups
- Supports 64 static IGMP groups
- Per VLAN IGMP Snooping
- IGMP Snooping Querier
- Host-based IGMP Snooping Fast Leave
PIM Snooping

L3 Features

ARP
- 512 Static ARP
- Supports Gratuitous ARP
- ARP Proxy
IP Interface
- Supports 256 interfaces
Loopback Interface
IPv6 Neighbor Discovery (ND)
UDP Helper
IPv6 Tunneling
- Static
- ISATAP
- GRE
- 6to4
IGMP Proxy Reporting
VRRP v2/v3

L3 Routing

Static Routing
- Max. 256 IPv4 entries
- Max. 128 IPv6 entries
- Supports route redistribution
- Supports secondary route
Supports 4096 hardware routing entries shared by IPv4/IPv6
- Max. 4096 IPv4 entries
- Max. 1024 IPv6 entries
Supports 32K hardware L3 forwarding entries shared by IPv4/IPv6
- Max. 32K IPv4 entries
- Max. 16K IPv6 entries
Default Routing
Policy-based Route (PBR)
Null Route
BFD (Bidirectional Forwarding Detection)
RIP
- RIP v1/v2
- RIPng
Route Redistribution
- Default Route
- Static Route
- RIP
- RIPng
- Null Route

VLAN

802.1Q
802.1v
Double VLAN (Q-in-Q)
- Port-based Q-in-Q
- Selective Q-in-Q
Port-based VLAN
MAC-based VLAN
Subnet-based VLAN
Private VLAN
VLAN Group
- Max. 4K static VLAN groups
- Max. 4094 VIDs
ISM VLAN (Multicast VLAN)
Voice VLAN
Auto Surveillance VLAN
VLAN Trunking
GVRP
- Up to 4094 dynamic VLANs

AAA

802.1X Authentication
- Supports Port-based access control
- Supports Host-based access control
- Identity-driven Policy Assignment
- Dynamic VLAN Assignment
  - QoS Assignment
  - ACL Assignment
Web-based Access Control (WAC)
- Identity-driven Policy Assignment
  - Dynamic VLAN Assignment
  - QoS Assignment
  - ACL Assignment
- Supports Port-based access control
- Supports Host-based access control
MAC-based Access Control (MAC)
- Identity-driven Policy Assignment
  - Dynamic VLAN Assignment
  - QoS Assignment
  - ACL Assignment
- Supports Port-based access control
- Supports Host-based access control
Compound Authentication
Microsoft NAP
- Support 802.1X NAP
- Support DHCP NAP
RADIUS and TACACS+ Authentication
Authentication Database Failover
Guest VLAN

QoS (Quality of Service)

802.1p Quality of Service
8 queues per port
QoS based on
- 802.1p Priority Queues
- DSCP
- IP address
- MAC address
- VLAN
- IPv6 Traffic Class
- IPv6 Flow Label
- TCP/UDP port
- Switch Port
- Ether Type
- ToS/IP Preference
- Protocol Type
Congestion Control
- WRED
Queue Handling
- Strict
- Weighted Round Robin (WRR)
- Strict + WRR
- Deficit Round Robin (DRR)
- Weighted Deficit Round Robin (WDRR)
Bandwidth Control
- Port-based (Ingress/Egress, min. granularity 64 Kb/s)
- Flow-based (Ingress/Egress, min. granularity 64 Kb/s)
- Per queue bandwidth control (min. granularity 64 Kb/s)
Support for following actions:
- Remark 802.1p priority tag
- Remark ToS/DSCP tag
Committed Information Rate (CIR)
Three Color Marker
- trTCM
- srTCM

Data Center Bridging (DCB)

802.1Qbb Priority-based Flow Control (PFC)
802.1Qaz Enhanced Transmission Selection (ETS)
802.1Qau Congestion Notification (CN)

ACL (Access Control List)

ACL based on:
- 802.1p priority
- VID
- MAC address
- EtherType
- IP address
- DSCP mask
- Protocol type
- TCP/UDP port number
- IPv6 Traffic Class
- IPv6 Flow Label
Max. ACL entries:
- Ingress
  - IPv4: 1792
  - IPv6: 448
- Egress
  - IPv4: 512
  - IPv6: 256
- 3K VLAN access map
Time-based ACL

Security

Port Security
- Supports up to 12K MAC addresses per port/system
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding
Dynamic ARP Inspection
IP Source Guard
DHCP Snooping
IPv6 Snooping
DHCPv6 Guard
IPv6 Route Advertisement (RA) Guard
IPv6 ND Inspection
ARP Spoofing Prevention
- Max. 64 entries
Duplicate Address Detection (DAD)
L3 Control Packet Filtering
Traffic Segmentation
SSL
- Supports v1/v2/v3
- Supports IPv4/IPv6 access
SSH
- Supports SSH v2
- Supports IPv4/IPv6 access
BPDU Attack Prevention
DOS Attack Prevention

OAM (Operations, Administration and Maintenance)

Cable Diagnostics
802.3ah Ethernet Link OAM
D-Link Unidirectional Link Detection (DULD)
Dying gasp
802.1ag Connectivity Fault Management (CFM)
Y.1731 OAM
Optical Transceiver Digital Diagnostic Monitoring (DDM)

Management

Web-based GUI
CLI
Telnet Server
Telnet Client
TFTP Client
FTP Client
Secure FTP (SFTP) Server
Traffic Monitoring
SNMP
- Supports v1/v2c/v3
SNMP Trap
System Log
DHCP Client
DHCP Server
DHCP Relay options 60, 61, 82
Multiple Images
Multiple Configurations
Flash File System
DNS Client
CPU Monitoring
MTU Setting
ICMP Tools
- Ping
- Traceroute
LLDP & LLDP-MED
DNS Relay
SMTP
DHCP Auto Configuration
NTP
RCP (Remote Copy Protocol)
RMONv1
RMONv2
Trusted Host
Password Encryption
Debug Command
sFlow
Switch Resource Management (SRM)
Microsoft Network Load Balancing (NLB)

MIB & RFC Standards

MIB Structure: RFC1065, RFC1066, RFC1155, RFC1156, RFC2578
Concise MIB Definitions: RFC1212
MIBII: RFC1213
MIB Traps Convention: RFC1215
Bridge MIB: RFC1493, RFC4188
SNMP MIB: RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576
SNMPv2 MIB: RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636
RMON MIB: RFC271, RFC1757, RFC2819
RMONv2 MIB: RFC2021
Ether-like MIB: RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635
802.3 MAU MIB: RFC2668
802.1p MIB: RFC2674, RFC4363
Interface Group MIB: RFC2863
RADIUS Authentication Client MIB: RFC2618
MIB for TCP: RFC4022
MIB for UDP: RFC4113
MIB for Diffserv.: RFC3298
RADIUS Accounting Client MIB: RFC2620
Ping & TRACEROUTE MIB: RFC2925
Running configuration writes and backup (D-Link MIB)
TFTP uploads and downloads (D-Link MIB)
Trap MIB (D-Link MIB)
IPv6 MIB: RFC2465
ICMPv6 MIB: RFC2466
Entity MIB: RFC2737
VRRP MIB: RFC2787
RIPv2 MIB: RFC1724
OSPF MIB: RFC1850
IPv4 Multicast Routing MIB: RFC5132, RFC2932
PIM MIB for IPv4: RFC2934
IP Forwarding Table MIB: RFC4292
IPv6 SNMP Mgmt Interface MIB: RFC4293
DDM MIB (D-Link MIB)
Private MIB (D-Link MIB)
DIFFSERV MIB (D-Link MIB)
MIB for D-Link Zone Defense (D-Link MIB)
IP: RFC791
UDP: RFC768
TCP: RFC793
ICMPv4: RFC792
ICMPv6: RFC2463, RFC4443
Extended ICMP to Support Multi-Part Messages: RFC4884
ARP: RFC826
CIDR: RFC1338, RFC1519
Definition of the DS Field in the IPv4 and IPv6 Headers: RFC2474, RFC3168, RFC3260
Extensible Authentication Protocol (EAP): RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748
SNMP Framework: RFC2571
SNMP Message Processing and Dispatching: RFC2572
SNMP Applications: RFC2573
User-based Security Model for SNMPv3: RFC2574
Expedited Forwarding PHB (Per-Hop Behavior): RFC3246
Supplemental Information for the New Definition of the EFPHB (Expedited Forwarding Per-Hop Behavior): RFC3247
DNS extension support for IPv6: RFC1886
Path MTU Discovery for IPv6: RFC1981
IPv6: RFC2460
Neighbor Discovery for IPv6: RFC2461, RFC4861
IPv6 Stateless Address Auto-configuration: RFC2462, RFC4862
IPv6 over Ethernet and definition: RFC2464
Dual Stack Hosts using the “Bump-In-the-Stack” Technology: RFC2767
IPv6 Addressing Architecture: RFC3513, RFC4291
IPv4/IPv6 dual stack function: RFC2893, RFC4213
Default Address Selection for Internet Protocol version 6: RFC3484
IP-IP tunnel: IP Encapsulation within IP: RFC2003
IP-IP tunnel:Allow MTU = 1500 or 1520: RFC1191
L2 distributed tunnel - CAPWAP Encapsulation: RFC5415

Product Views:


*Front View*	*Back View*

Documentation:

Download the D-Link DXS-3400 Series Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
