D-Link GO-SW-8GE
8-Port Gigabit Unmanaged Metal Desktop Switch

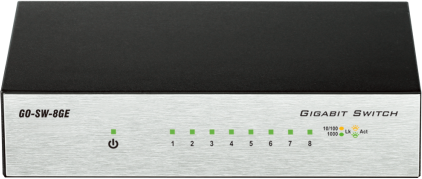

D-Link GO-SW-8GE

Sorry, this product is no longer available, please contact us for a replacement.


Think Green
The GO-SW-8GE 8-Port Gigabit Unmanaged Metal Desktop Switch is part of D-Link’s new series of Rear ViewSOHO devices that make use of D-Link’s Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.

Conserves Energy
The GO-SW-8GE eight port Gigabit Unmanaged Metal Desktop Switch helps you conserve energy automatically. The switch saves substantial amounts of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly
The GO-SW-8GE five and eight port Gigabit Unmanaged Metal Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Gigabit Connection for Home and SOHO
The GO-SW-8GE offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides five/eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.


  • Built-in D-Link Green Technology
  • Inexpensive Gigabit solution for Home/SOHO
  • 8 10/100/1000 Mbps Gigabit ports
  • 10/16 Gbps switching fabric
  • Auto MDI/MDIX crossover for all ports
  • Secure store-and-forward switching scheme
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports 9,216 Byte Jumbo Frames
  • RoHS compliant
  • Plug-and-play installation

Package Contents

  • 8 port Gigabit Unmanaged Metal Desktop Switch (GO-SW-8GE)
  • Power Adapter
  • Quick Install Guide

Minimum System Requirements

  • Devices Supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
  • Cat5 or better Ethernet Cable
  • Network Interface Card for each computer

Technical Specifications:

D-Link Go-SW-5GE/8GE Specifications
Switching Fabric 10 Gbps 16 Gbps
  • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
  • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS
  • IEEE 802.3az Energy-Efficient Ethernet (EEE)
Data Transfer Rate
  • Ethernet:
    • 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet:
    • 100 Mbps (half duplex), 200 Mbps (full duplex
  • Gigabit Ethernet:
    • 2000 Mbps (full duplex)
Packet Filtering/Forwarding Rates
  • Ethernet: 14,880 pps
  • Fast Ethernet: 148,800 pps
  • Gigabit Ethernet: 1,488,000 pps
Network Cables
  • 10BASE-T:
    • UTP CAT 3, 4, 5/5e (100 m max.)
    • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TX, 1000BASE-T:
    • UTP CAT 5/5e (100 m max.)
    • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange Auto MDI/MDIX adjustment for all ports
LED Indicators
  • Per port: Link/Activity/Speed
  • Per device: Power
Transmission Method Store-and-forward
MAC Address Table 2K entries 8K entries
MAC Address Learning Automatic update
RAM Buffer 128KB per device
Jumbo Frames 9,216 Bytes
QoS 4 Queues, strict mode
General Specifications
DC Input External 5 V/1 A Level "V" Power Adapter
Power Consumption
  • Power On (Standby):
    DC input: 0.45 watts
    AC input: 1.4 watts
  • Maximum:
    DC input: 2.37 watts
    AC input: 3.9 watts
  • Power On (Standby):
    DC input: 0.59 watts
    AC input: 1.5 watts
  • Maximum:
    DC input: 3.48 watts
    AC input: 5.4 watts
Heat Dissipation
  • Power On (Standby) AC input: 4.77 BTU/h
  • Maximum DC input: 13.30 BTU/h
  • Power On (Standby) AC input: 5.22 BTU/h
  • Maximum DC input: 18.25 BTU/h
MTBF 1,261,786.896 hours 522,270 hours
Operating Temperature 23º to 130º F (0º to 50º C)
Storage Temperature 14º to 158º F (-10º to 70º C)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
Dimensions 3.54x 2.83 x 1.06 inches (90 x 72 x 27 mm) 5.03 x 3.14 x 1.10 inches (128 x 80 x 28 mm)
Weight 10.08 ounces (286 grams) 15.52 ounces (440 grams)
  • FCC Class B
  • ICES-003 Class B
  • CE Class B
  • C-Tick Class B
  • VCCI Class B
  • cUL
  • CB
  • LVD
Warranty 3-Year Limited*

* 3-Year Limited Warranty available only in the USA and Canada.


Download the D-Link GO-SW-5GE/8GE Datasheet (PDF).
